Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
PWR-C1-1900WACP-RF
1900W AC 80+ platinum Config 1 Power Supply REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

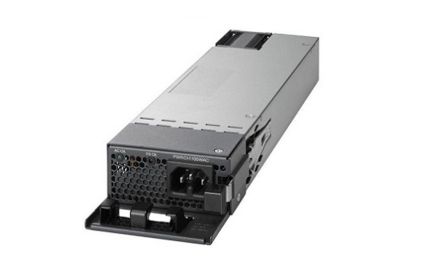

The Cisco PWR-C1-1900WAC-P-M is a 1900W AC power supply designed for the Catalyst 9300-M series switches.
Key specifications and features:
Maximum output power: 1900W with 230V input.
Input voltage range and frequency: 200V to 240V AC, 55 to 60 Hz.
Input current: Maximum 12A.
Output ratings: -56V at 33.92A.
Output holdup time: Minimum 20 ms at 100VAC.
Power supply input receptacle: IEC 320-C22.
Power cord rating: 16A.
Physical dimensions: Height 1.58 in, Width 3.25 in, Depth 13.7 in.
Weight: Approximately 3.1 lb (1.4 kg).
Operating temperature: Normal range from -5°C to +45°C, with altitude support up to 5000 feet (1500m), and short-term exceptional conditions up to +55°C at sea level.
Storage temperature: -40°C to +70°C.
Relative humidity: 5% to 90% noncondensing.
Altitude: Up to 10,000 feet (3000 meters) at 45°C.
Compliance: Meets various EMI and EMC standards including FCC Part 15 Class A, ICES-003 Class A, EN 55032 Class A, and others.
LED indicators: "AC OK" for input power status and "PS OK" for output power status.
Upgrade options: PWR-C1-1900WAC-UP is available as a PSU upgrade option to the 1900W primary PSU.
This power supply is specifically tailored for high-performance Catalyst 9300-M switches, providing robust power delivery and environmental resilience for enterprise networking environments.
