Notes:
Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
PWR-C1-350WAC-RF

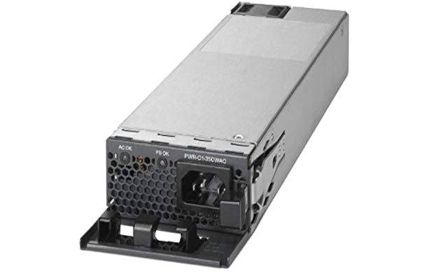

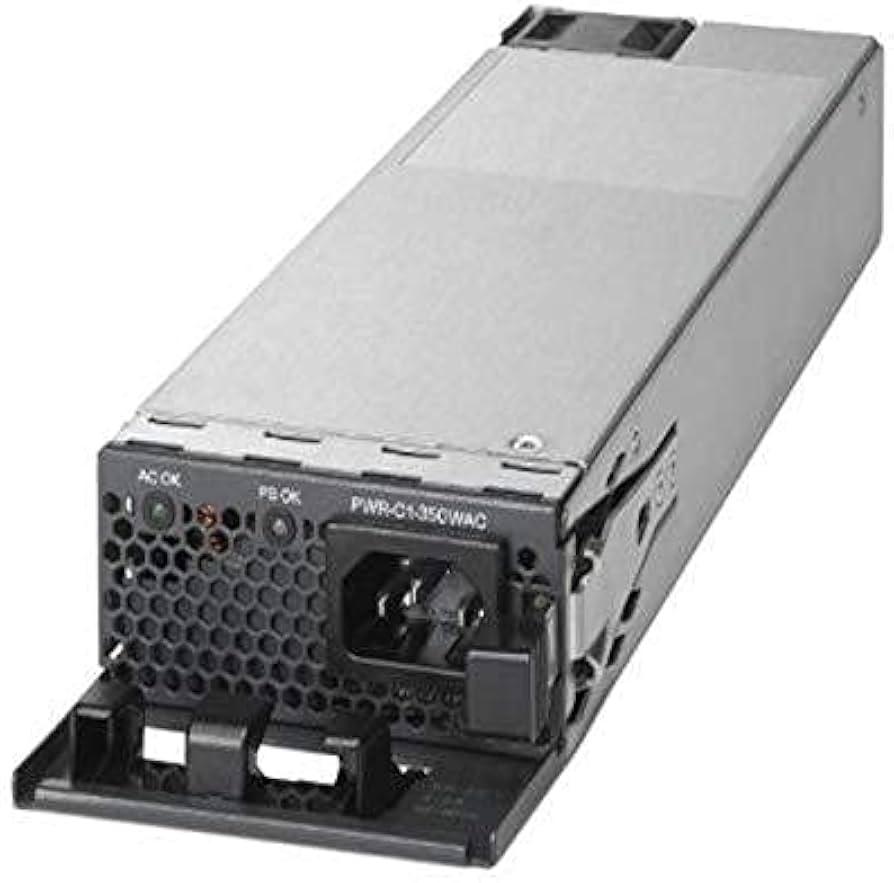

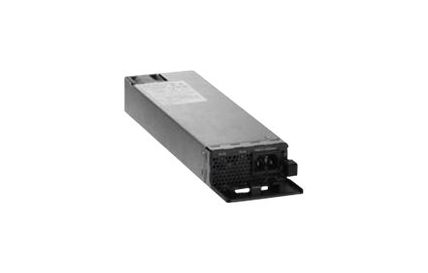

Cisco - power supply - hot-plug / redundant - 350 Watt
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Cisco - power supply - hot-plug / redundant - 350 Watt
| Designed For | Catalyst 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48T-E, 3850-48T-L, 3850-48T-S |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Dimensions (WxDxH) | 3.3 in x 12.2 in x 1.6 in |
| Input Connectors | Power IEC 320 EN 60320 C16 |
| Input Voltage | AC 100-240 V |
| Output Voltage | -56 V |
| Power Capacity | 350 Watt |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4- |
| Depth | 12.2 in |
| Designed For | Cisco Catalyst 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48T-E, 3850-48T-L, 3850-48T-S |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Frequency Required | 50 - 60 Hz |
| Height | 1.6 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Input Connectors | Power IEC 320 EN 60320 C16 |
| Input Voltage | AC 100-240 V |
| Max Operating Temperature | 113 |
| Min Operating Temperature | 23 |
| Output Voltage | -56 V |
| Power Capacity | 350 Watt |
| Weight | 2.65 lbs |
| Width | 3.3 in |
