Notes:

Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

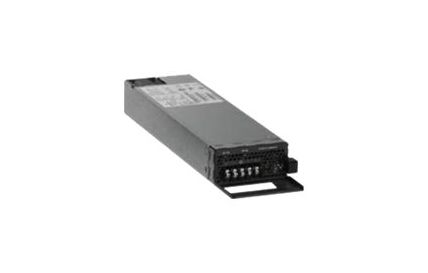

PWR-C1-440WDC-RF

440W DC Config 1 Power Supply REMANUFACTURED

Out of Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

Designed ForCatalyst 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48F-E, 3850-48F-L, 3850-48F-S, 3850-48P-E, 3850-48P-L, 3850-48P-S, 3850-48PW-S, 3850-48T-E, 3850-48T-L, 3850-48T-S
Device TypePower supply - hot-plug / redundant - plug-in module
Dimensions (WxDxH)3.3 in x 12.2 in x 1.6 in
Input ConnectorsTerminal block
Input Voltage-36 - -72 V
Output Voltage-56 V
Power Capacity440 Watt
Compliant StandardsCISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-
Depth12.2 in
Designed ForCisco Catalyst 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48F-E, 3850-48F-L, 3850-48F-S, 3850-48P-E, 38
Device TypePower supply - hot-plug / redundant - plug-in module
Height1.6 in
Humidity Range Operating5 - 90% (non-condensing)
Input ConnectorsTerminal block
Input Voltage-36 - -72 V
Max Operating Temperature113
Min Operating Temperature23
MTBF469,350 hours
Output Voltage-56 V
Power Capacity440 Watt
Weight2.65 lbs
Width3.3 in
