Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
PWR-C1-715WAC-P-RF
715W AC 80+ platinum Config 1 Power Supply REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

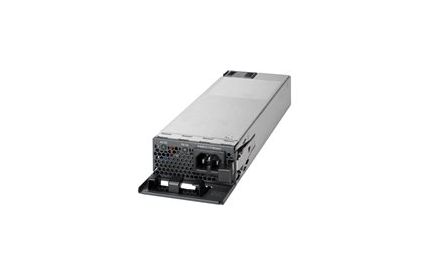

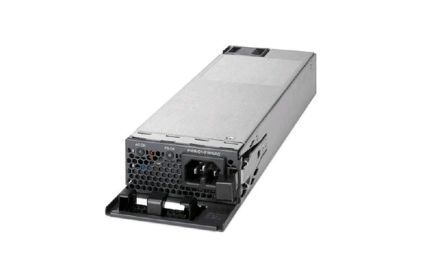

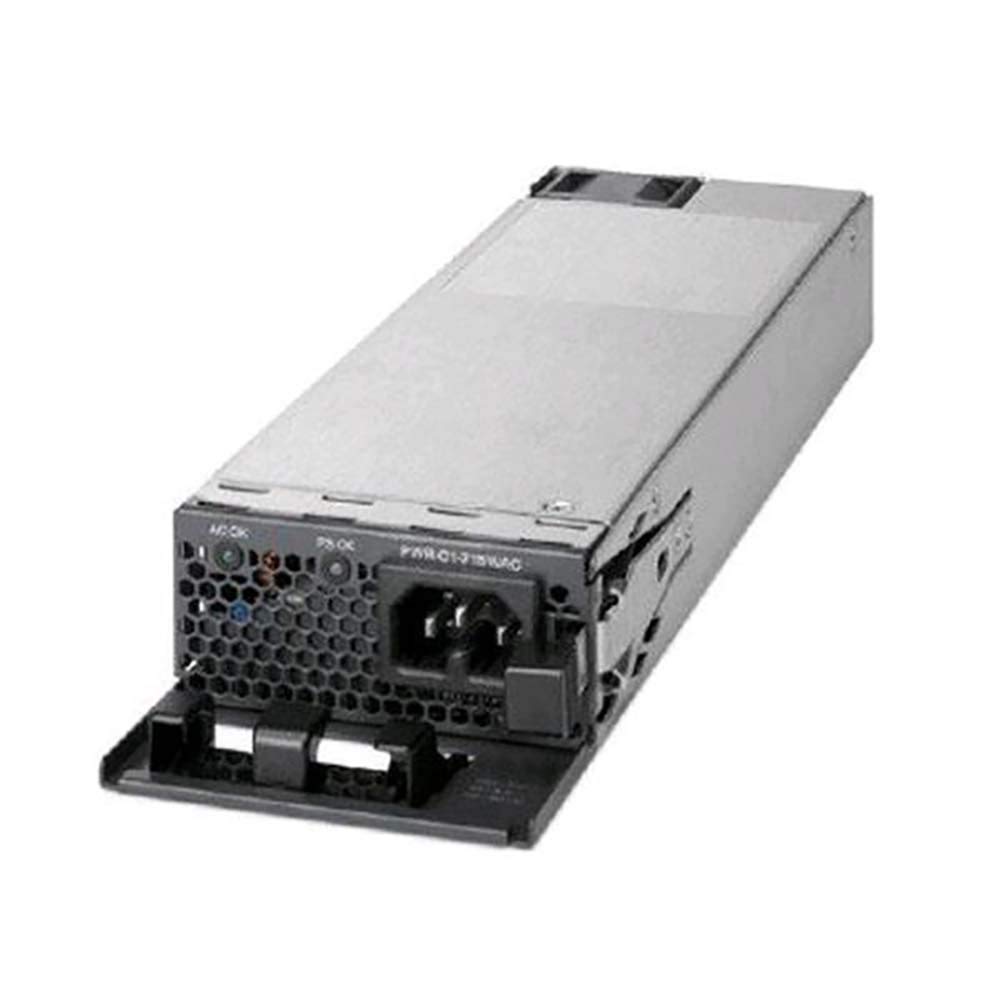

The PWR-C1-715WAC-P is a 715W AC power supply designed for Cisco switches. It is field-replaceable and hot-swappable, allowing for power replacement where and when needed without shutting down the device. The power supply supports an input voltage range of 100 to 240 VAC at 50 to 60 Hz, with an input current of 10-5A. It provides an output of 56V at 12.8A and has an output holdup time of 16.7 ms minimum at 100VAC. The physical dimensions are approximately 1.58 x 3.25 x 12.20 inches, and it weighs about 2.6 lb (1.2 kg). The power supply uses an IEC 320-C16 input receptacle and has a power cord rating of 15A.
Key Features:
715W AC power supply
Field-replaceable and hot-swappable
Input voltage: 100-240 VAC, 50-60 Hz
Output: 56V at 12.8A
Output holdup time: 16.7 ms minimum at 100VAC
Dimensions: 1.58 x 3.25 x 12.20 inches
Weight: 2.6 lb (1.2 kg)
IEC 320-C16 input receptacle
Power cord rating: 15A
This power supply is commonly used with Cisco Catalyst and Meraki switches to ensure reliable and flexible power management.
