Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.

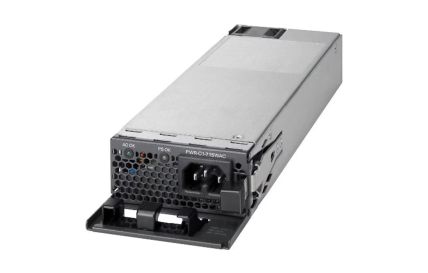

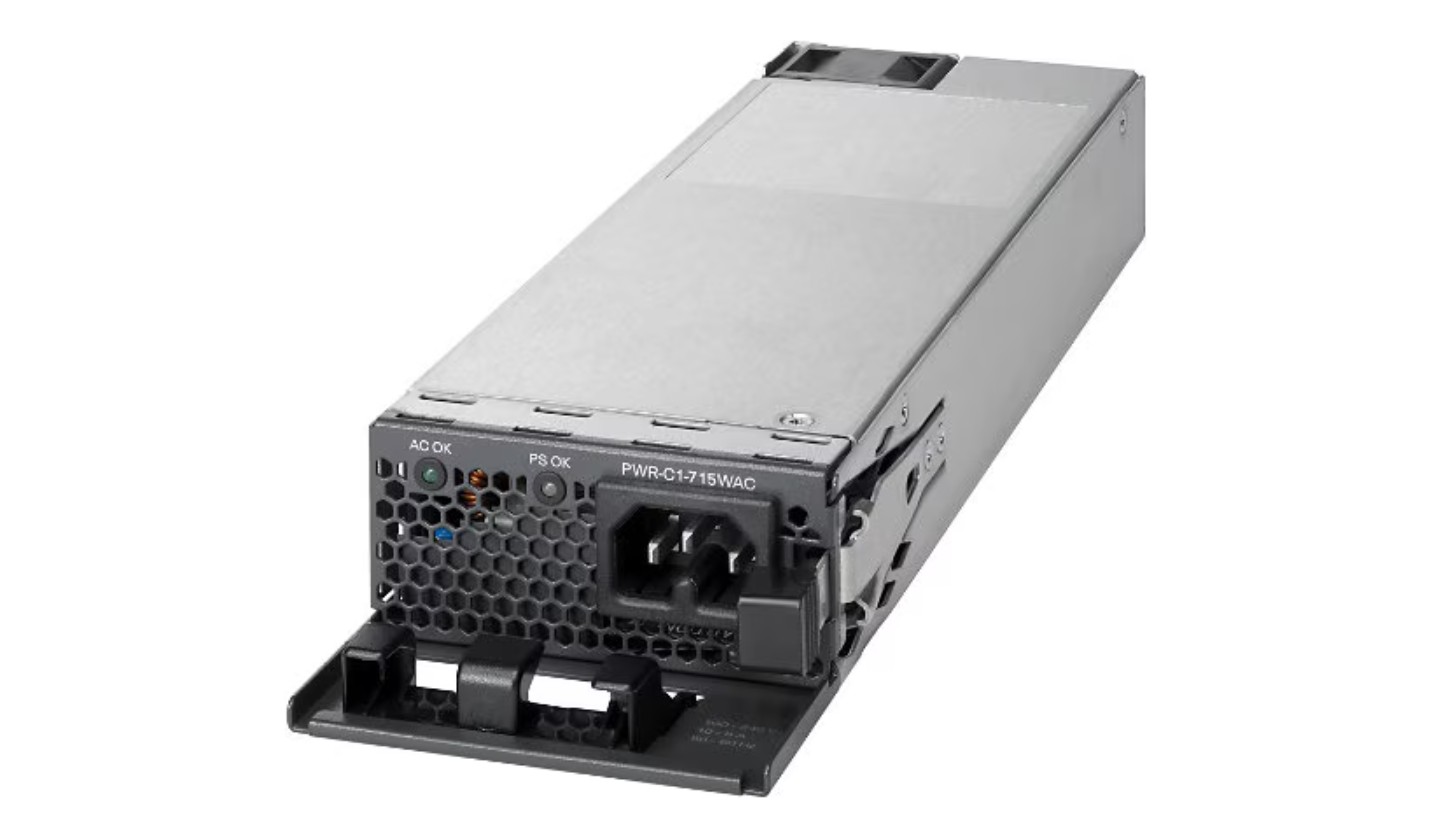

PWR-C1-715WAC-RF
715W AC Config 1 Power Supply REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The PWR-C1-715WAC is a 715W AC power supply used in Cisco Catalyst switches, such as the Catalyst 9300 and 3850 series.
Key specifications:
Power Output: 715W maximum
Input Voltage Range: 100 to 240 VAC, 50 to 60 Hz
Input Current: 10 to 5 A
Output Ratings: -56V at 12.8A
Output Holdup Time: Minimum 16.7 ms at 100 VAC
Power Supply Input Receptacle: IEC 320-C16 (IEC60320-C16)
Power Cord Rating: 15A
Physical Dimensions: Approximately 1.58 x 3.25 x 12.20 inches
Weight: Around 2.6 lb (1.2 kg)
Features: Field-replaceable and hot-swappable for flexible power management
Operating Temperature: -5°C to +45°C (23°F to 113°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5% to 90% noncondensing
Altitude: Up to 10,000 ft (3000 meters) at 45°C
LED Indicators: "AC OK" for input power status and "PS OK" for output power status
This power supply is designed to provide reliable power to Cisco Catalyst switches and supports hot-swapping to minimize downtime during replacements or upgrades.
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Dimensions (WxDxH) | 3.3 in x 12.2 in x 1.6 in |
| Input Connectors | Power IEC 320 EN 60320 C16 |
| Input Voltage | AC 100-240 V |
| Output Voltage | -56 V |
| Power Capacity | 715 Watt |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4- |
| Depth | 12.2 in |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Frequency Required | 50 - 60 Hz |
| Height | 1.6 in |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Input Connectors | Power IEC 320 EN 60320 C16 |
| Input Voltage | AC 100-240 V |
| Max Operating Temperature | 113 |
| Min Operating Temperature | 23 |
| Output Voltage | -56 V |
| Power Capacity | 715 Watt |
| Weight | 2.87 lbs |
| Width | 3.3 in |
