PWR-C2-640WAC-RF

640W AC Config 2 Power Supply Spare REMANUFACTURED

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

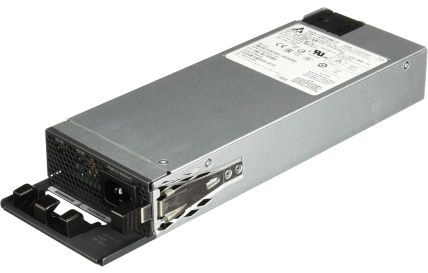

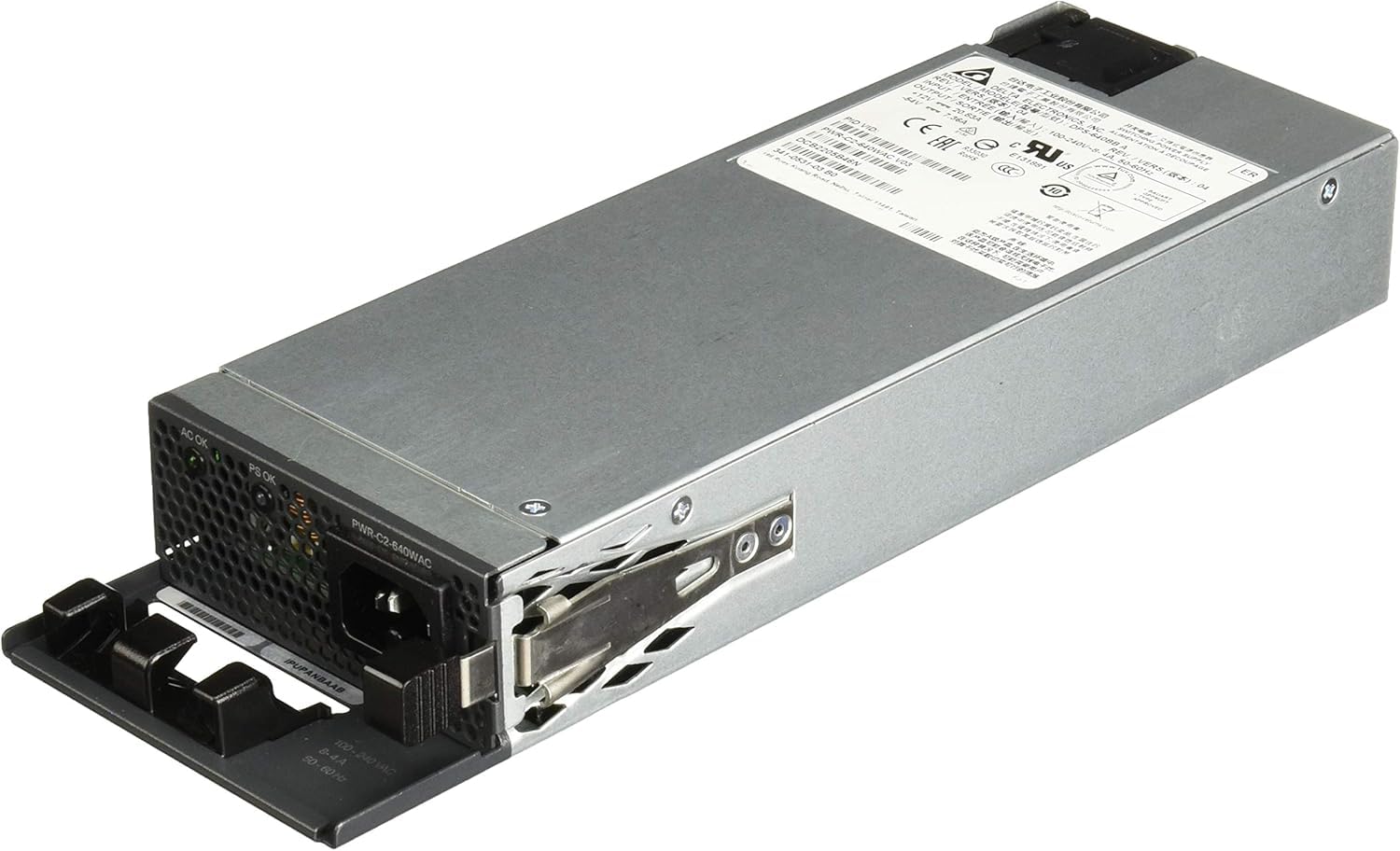

The Cisco PWR-C2-640WAC is a 640-watt AC power supply module designed for use with Catalyst 2960-XR switches. It is an autoranging unit that supports input voltages between 100 and 240 VAC at 50-60 Hz frequency. The power supply provides an output of +12 V at 20.83 A and -54 V at 7.36 A. It has an input current range of 8 to 4 A. The physical dimensions of the PWR-C2-640WAC are approximately 1.58 x 3.75 x 11.75 inches (H x W x D), and it weighs about 3.1 lb (1.41 kg). The power supply generates about 2371 BTUs per hour of input power and 2183 BTUs per hour of output power. It is compatible with switches that support this power rating and is typically used as a redundant or primary power source in these systems. Note that the power supply requires additional depth clearance behind the chassis for removal and cable management 6.

Key Features:
Power Output: 640 W
Input Voltage: 100-240 VAC, 50-60 Hz (autoranging)
Output Ratings: +12 V @ 20.83 A, -54 V @ 7.36 A
Input Current: 8-4 A
Dimensions: 1.58 x 3.75 x 11.75 in. (H x W x D)
Weight: 3.1 lb (1.41 kg)
BTU Output: 2183 BTUs/hr
Compatible with Catalyst 2960-XR series switches
Requires additional clearance for installation and removal
This power supply is suitable for providing reliable power to Cisco Catalyst 2960-XR switches, supporting network stability and redundancy where applicable.
