Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
PWR-RGD-ACDC250-RF
HghrPoE250WPSUfrIE4010/5000,100-240VAC100-250VREMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

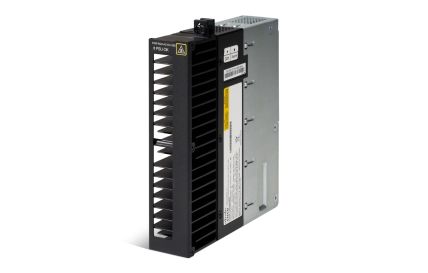

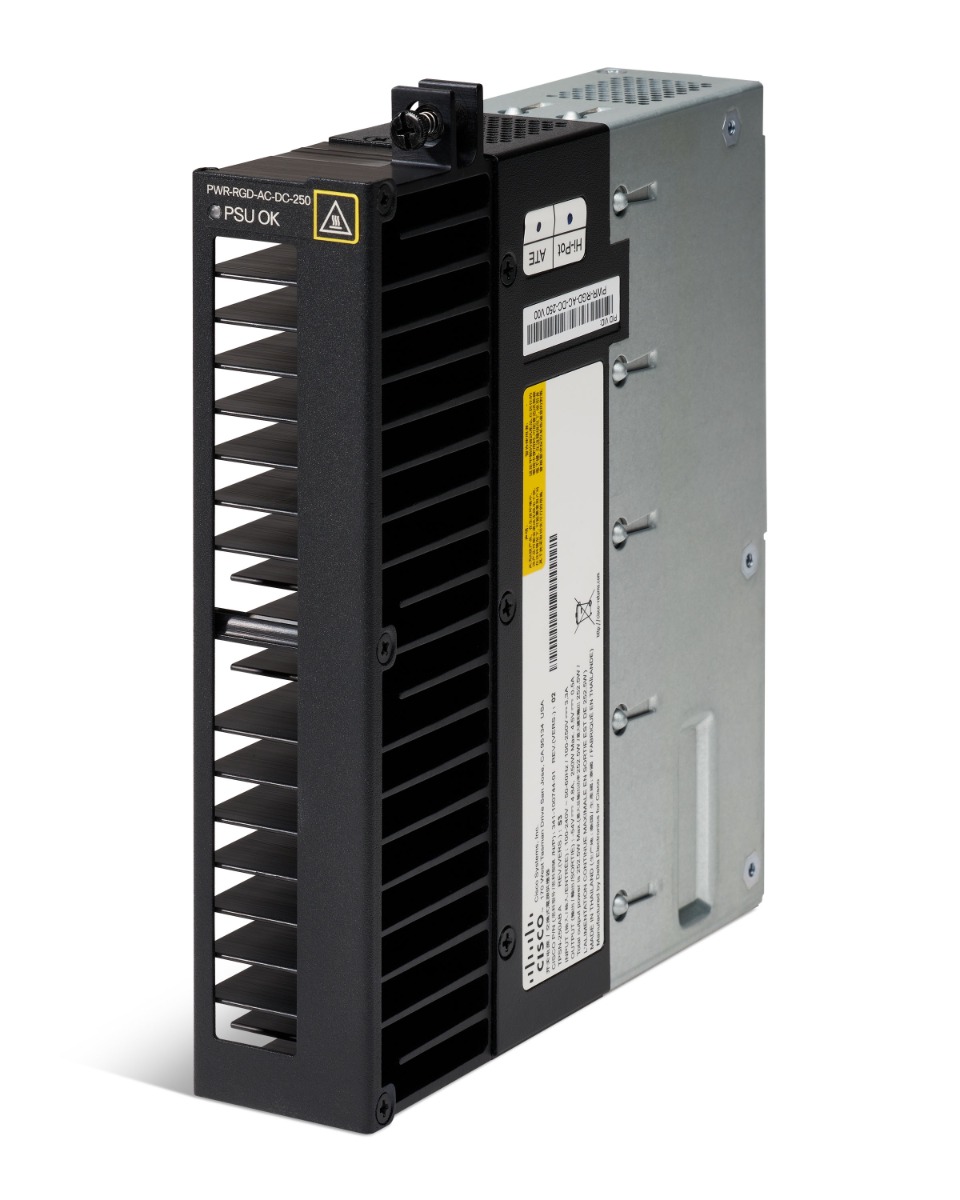

The Cisco PWR-RGD-AC-DC-250 is a 250W power supply unit designed for use with Cisco Catalyst IE9300 Rugged Series switches. It supports both AC and high-voltage DC input power sources, with an input voltage range of 85-264VAC or 88-300VDC, making it compliant for use in hazardous locations. This power supply provides a higher PoE power budget for IE9310 and IE9320 systems that support PoE, and it is also compatible with optical and non-PoE copper systems, although the higher capacity is not necessary for non-PoE operation.
Physically, the PWR-RGD-AC-DC-250 extends approximately 30 mm (1.18 inches) from the rear of the switch. It features LED indicators to show power status: green indicates valid input and proper operation, red indicates output failure despite valid input, and blinking red indicates the power supply is present but lacks power input.
This power supply is recommended for new installations, with older models without the "-H" suffix supported only for existing users and not approved for hazardous location use.
The PWR-RGD-AC-DC-250 is a rugged, field-replaceable power supply module providing 250 watts of power with flexible AC/DC input options, suitable for industrial environments requiring hazardous location compliance and enhanced PoE capabilities on Cisco IE9300 Rugged Series switches.
