QSFP-100G-PSM4S-RF
100GBASEPSM4QSFPTransceiverMPO500moverSMF REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

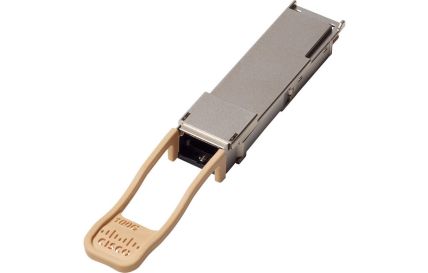

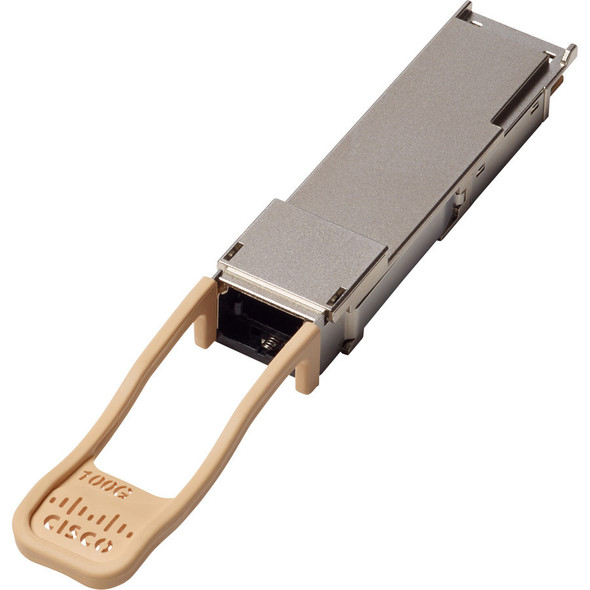

The Cisco QSFP-100G-PSM4-S is a 100GBASE PSM4 QSFP transceiver module designed for single-mode fiber (SMF) with MPO-12 (12-fiber) APC connectors. It supports link lengths of up to 500 meters over SMF. The 100 Gigabit Ethernet signal is carried over 4 parallel lanes, each operating at 25G, using NRZ modulation and DSP technology. This module is optimized for G.652 fiber and requires RS-FEC (Reed Solomon Forward Error Correction) for error correction.
Key features include:
100G speed with a reach of up to 500 meters over SMF.
MPO-12 APC connector type.
Parallel 4-lane transmission at 25G per lane.
NRZ modulation with DSP.
Power consumption around 3.5W.
Operating temperature range from 0 to 70°C.
Compliance with 100GBASE PSM4 standard.
Breakout capable to 4x 25G-LR modules.
This module is suitable for data center and enterprise applications requiring cost-effective 100G connectivity over moderate distances on single-mode fiber.
