Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.

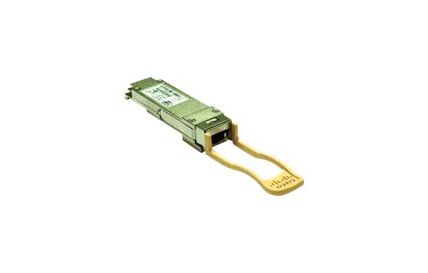

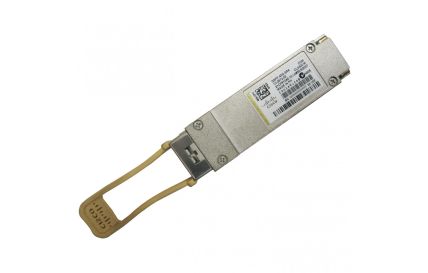

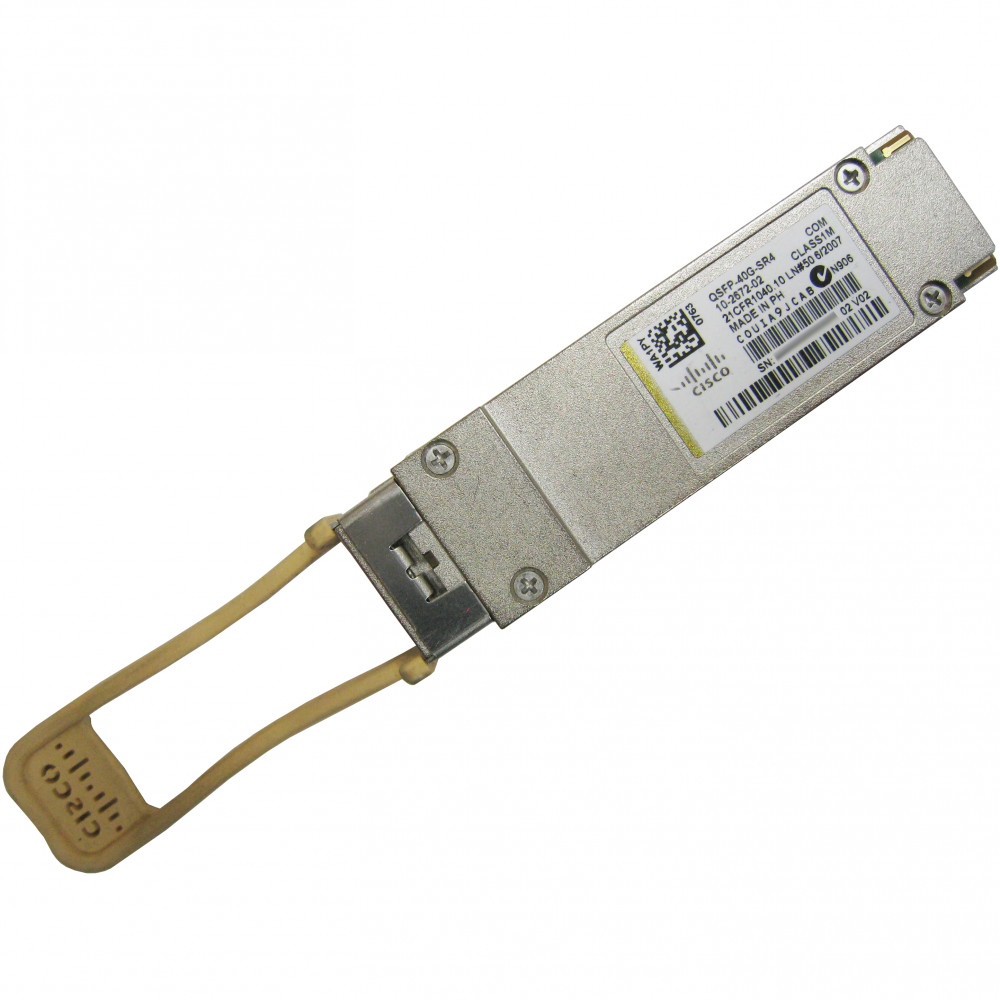

QSFP-40G-SR4-RF
40GBASE-SR4 QSFP TransceiverMod wMPOConnector REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The QSFP-40G-SR4 is a compact, hot-swappable 40 GbE QSFP+ fiber transceiver designed for high-speed communication between switches and other networking components. It supports the standard 40GBASE-SR4 with a range of up to 150 meters over multimode fiber. This transceiver is compatible with Cisco Meraki MS355, MS390, and MS425 switches. It primarily enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber connectors and can also operate in a 4x10G breakout mode for interoperability with 10GBASE-SR interfaces.
Key features:
Compact, hot-swappable form factor
Supports 40GBASE-SR4 standard
Up to 150 meters reach on OM4 multimode fiber
Compatible with Cisco Meraki MS355, MS390, and MS425 switches
Supports 4x10G breakout mode for interoperability with 10GBASE-SR and SFP-10/25G-CSR-S interfaces
This transceiver is optimized to guarantee interoperability with IEEE 40GBASE-SR4 standards and provides reliable high-speed optical connectivity for data center and enterprise network environments 2.
| Cabling Type | 40GBASE-SR4 |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Designed For | ASR 9000 Series 1-port 40-Gigabit Ethernet Modular Port Adapter, 2-port 40-Gigabit Ethernet Modular Port Adapter; Nexus 2248PQ 10GE Fabric Extender, 3016Q, 3064-E, 3064PQ, 3064PQ Front-to-Back Airflow LAN Enterprise License Bundle, 3064-X, 6001 |
| Device Type | QSFP+ transceiver module - MPO multi-mode |
| Dimensions (WxDxH) | 0.7 in x 2.9 in x 0.5 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Max Transfer Distance | 492 ft |
| Optical Wave Length | 850 nm |
| Cabling Type | 40GBASE-SR4 |
| Color | Beige |
| Compatible Slots | 1 x QSFP+ |
| Compliant Standards | Laser Class 1, ELV, RoHS, IEC 60825-1, GR-326-CORE, MSA, GR-20-CORE, GR-1435-CORE |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Depth | 2.9 in |
| Designed For | Cisco ASR 9000 Series 1-port 40-Gigabit Ethernet Modular Port Adapter, 2-port 40-Gigabit Ethernet Modular Port Adapter |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Height | 0.5 in |
| Interfaces | 1 x 40Gb Ethernet - MPO multi-mode |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 492 ft |
| Min Operating Temperature | 32 |
| Optical Wave Length | 850 nm |
| Service & Support Details | Limited warranty - 90 days |
| Service & Support | 90 days warranty |
| Weight | 3.53 oz |
| Width | 0.7 in |
