SFP-10/25G-CSRS-RF
Dual Rate 10/25GBASE-CSR SFP Module REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

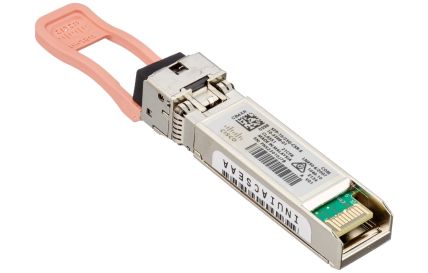

The Cisco SFP-10/25G-CSRS-RF is a 10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) transceiver module designed for short reach applications over multimode fiber (MMF). It supports data rates of 10 Gbps and 25 Gbps and operates over OM3 and OM4 fiber types.
Key features:
Form Factor: SFP28
Data Rate: 10/25 Gbps
Reach: Up to 300 meters on OM3 fiber and up to 400 meters on OM4 fiber at 10G/25G speeds
Fiber Type: Duplex multimode fiber (MMF)
Connector Type: LC
Optical Standard: 25GBASE-LR
Wavelength: 840 to 860 nm
Transmitter Type: VCSEL
Receiver Type: PIN photodiode
Operating Temperature Range: 0 to 70°C
Forward Error Correction (FEC): Requires RS-FEC on the host port for full reach at 25G; no FEC required for 10G operation
Link Length with FEC: 300m (OM3) and 400m (OM4)
Link Length without FEC: 30m (OM3) and 50m (OM4) at 25G
This module is suitable for data center and high-performance computing networks requiring flexible 10/25G connectivity with short reach over multimode fiber.
