SFP-10G-SR-S-RF
SFP-10G-SR-S-RF
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

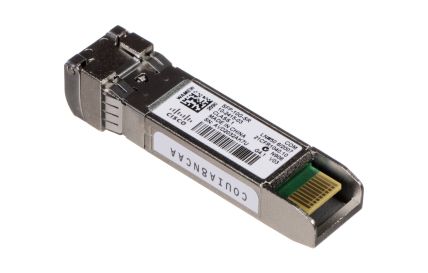

The Cisco SFP-10G-SR-S is a 10GBASE-SR SFP+ transceiver module designed for multimode fiber (MMF) with the following key features:
Data Rate: 10 Gbps
Form Factor: SFP+
Reach: Up to 400 meters on OM4 multimode fiber
Cable Type: Duplex fiber
Connector Type: LC
Operating Temperature Range: 0 to 70°C
Optical Standard: 10GBASE-SR
Wavelength: 843 to 860 nm
Transmitter Type: VCSEL
Receiver Type: PIN photodiode
Power Consumption: Approximately 1 watt
Digital Optical Monitoring (DOM): Supported
This module is optimized for use with OM4 fiber and supports link lengths of up to 400 meters. It is suitable for high-speed 10 Gigabit Ethernet connections over multimode fiber in data center and enterprise network environments. The SFP-10G-SR-S is also supported on Cisco Catalyst 9800 Series Wireless Controllers and other Cisco devices that accept SFP+ modules.
