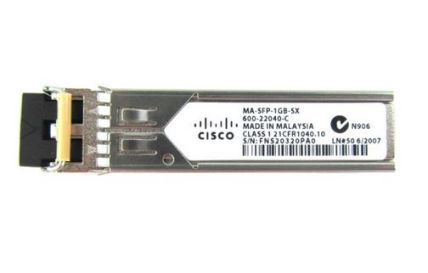

SFP-1G-SX-RF
1000BASE-SX SFP transceivermoduleforSFP+ports REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco SFP-1G-SX is a Small Form-Factor Pluggable (SFP) transceiver module designed for Gigabit Ethernet applications. It supports 1000BASE-SX standard and operates over multimode fiber optic cables.
Key features of the SFP-1G-SX:
Data Rate: 1 Gbps (Gigabit Ethernet)
Fiber Type: Multimode fiber (MMF)
Maximum Reach: Up to 1 km over laser-optimized 50 µm multimode fiber (OM3/OM4)
Connector Type: LC duplex
Compatibility: Interoperable with any -SX 1GE optics at the far end
Operating Temperature Range: Commercial (0 to 70°C)
Power Consumption: Up to 2W per SFP port
Digital Optical Monitoring (DOM): Supported
Hot-swappable: Yes, for easy serviceability and uptime maximization
The SFP-1G-SX module is widely used to link switches and routers to fiber-optic networks, providing reliable and cost-effective Gigabit Ethernet connectivity in enterprise and data center environments. It is compatible with various Cisco platforms and can be intermixed with other SFP types on a port-by-port basis.
For detailed specifications, environmental conditions, and compatibility, refer to Cisco's SFP Modules for Gigabit Ethernet Applications Data Sheet and the Transceiver Module Group (TMG) Compatibility Matrix.
Additionally, the SFP-1G-SX is supported on Cisco Catalyst 9400 Series uplink ports and is part of Cisco's LightSpeed Plus 5th Generation 1G solution for ASR 9000 Series routers, enabling 1G connections on 10G/25G ports with a reach of 1 km over multimode fiber.
