Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.

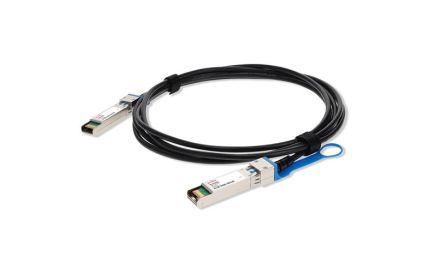

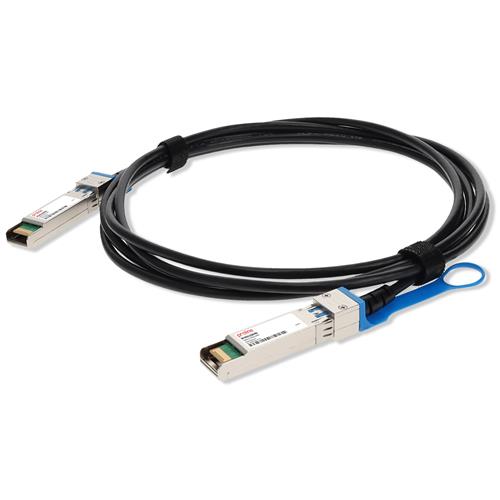

SFP-H25G-CU5M-RF
25GBASE-CU SFP28 Cable 5 Meter REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco SFP-H25G-CU series consists of 25GBASE-CR1 direct-attach copper (DAC) cables designed for short-distance, high-speed connectivity. These cables are available in fixed lengths ranging from 1 meter up to 5 meters, with specific part numbers indicating the length, such as:
SFP-H25G-CU1M: 1 meter
SFP-H25G-CU1.5M: 1.5 meters
SFP-H25G-CU2M: 2 meters
SFP-H25G-CU2.5M: 2.5 meters
SFP-H25G-CU3M: 3 meters
SFP-H25G-CU4M: 4 meters
SFP-H25G-CU5M: 5 meters
Key Features:
Type: Direct-attach copper cable assembly (Twinax)
Data Rate: 25 Gigabit Ethernet (25GBASE-CR1)
Cable Lengths: 1m to 5m fixed lengths
Power Consumption: Approximately 1 Watt or less depending on length
Pull Tab/Bail Latch Color: Varies by length (e.g., beige for 1m, black for 1.5m, brown for 2m, etc.)
Use Case: Ideal for very short links within racks or across adjacent racks in data center top-of-rack consolidation applications, connecting 25G server adapters and switches.
These cables provide a cost-effective, low-latency solution for high-performance server interconnects using Twinax passive copper technology.
