SG220-26-K9-NA-RF

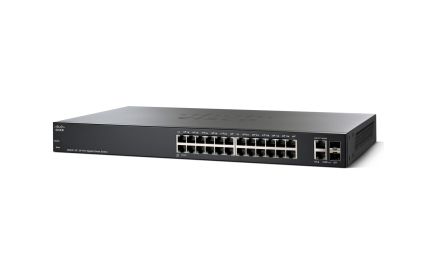

SG220-26 26-Port Gigabit Smart Plus Switch REMANUFACTURED
Cisco Small Business Smart Plus SG220-26 - switch - 26 ports - managed - desktop, rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | Limited lifetime warranty |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| Device Type | Switch - 26 ports - managed |
| Dimensions (WxDxH) | 17.3 in x 7.9 in x 1.7 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multica |
| Jumbo Frame Support | 9216 bytes |
| Localization | North America |
| MAC Address Table Size | 8192 entries |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Forwarding performance (64-byte packet size): 38.69 Mpps |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
| Subtype | Gigabit Ethernet |
| Authentication Method | RADIUS, TACACS+ |
| Cables Included | 1 x console cable |
| Compliant Standards | C-Tick, UL 60950, FCC CFR47 Part 15, CSA 22.2 |
| Depth | 7.9 in |
| Device Type | Switch - 26 ports - managed |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Features | Flow control, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, |
| Flash Memory | 32 MB |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Interfaces | 26 x 1000Base-T - RJ-45 |
| Jumbo Frame Support | 9216 bytes |
| Localization | North America |
| MAC Address Table Size | 8192 entries |
| Max Operating Temperature | 122 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -4 |
| MTBF | 342,867 hours |
| Performance | Forwarding performance (64-byte packet size) : 38.69 Mpps |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
| Power Device | Internal power supply |
| Rack Mounting Kit | Included |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
| Service & Support Details | Limited warranty - replacement - lifetime |
| Service & Support | Limited lifetime warranty |
| Status Indicators | Port transmission speed, system, link/activity |
| Subtype | Gigabit Ethernet |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 6.19 lbs |
| Width | 17.3 in |
