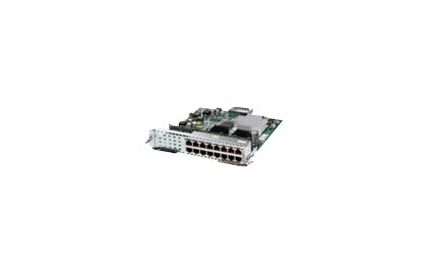

SM-ES2-16-P-RF
Enhanced EtherSwitch, L2, SM, 15 FE, 1GE, POE REMANUFACTURED
The Cisco Enhanced EtherSwitch Service Modules greatly expands the router's capabilities by integrating industry-leading Layer 2 switching with feature sets identical to those found in the Cisco Catalyst 3560-E and Catalyst 2960 Series Switches. The Cisco Enhanced EtherSwitch Service Modules are the first modules to take advantage of the increased capabilities on the Cisco 3900 and 2900 Series Integrated Services Routers. Additionally, these service modules enable Cisco's industry-leading power initiatives, and per-port PoE power monitoring-all of which enhance the ability of the branch office to scale to next-generation requirements and still meet important initiatives for IT teams to operate a power efficient network.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Designed For | Cisco 2911, 2921, 2951, 3925, 3945; Catalyst 2960, 2960-24, 2960-48, 3560E-12, 3560E-24, 3560E-48 |
| Device Type | Switch - 15 ports - managed |
| Dimensions (WxDxH) | 8.1 in x 8.1 in x 1.6 in |
| Enclosure Type | Plug-in module |
| Features | Layer 2 switching, power over Ethernet (PoE), Intrusion Detection System (IDS), DHCP snooping, Dynamic ARP Inspection (DAI) |
| Ports | 15 x 10/100 + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 3, HTTP, SSH |
| Subtype | Fast Ethernet |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Depth | 8.1 in |
| Designed For | Cisco 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, |
| Device Type | Switch - 15 ports - managed |
| Enclosure Type | Plug-in module |
| Features | Layer 2 switching, power over Ethernet (PoE), Intrusion Detection System (IDS), DHCP snooping, Dynamic ARP Inspection (DAI) |
| Height | 1.6 in |
| Humidity Range Operating | 5 - 90% |
| Interfaces | 15 x 100Base-TX - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Ports | 15 x 10/100 + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 3, HTTP, SSH |
| Subtype | Fast Ethernet |
| Weight | 4.85 lbs |
| Width | 8.1 in |
