Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

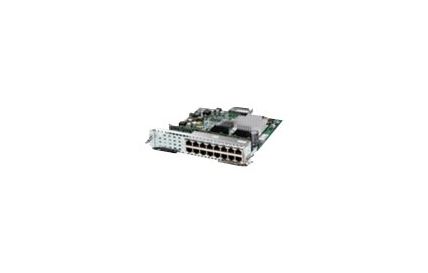

SM-ES3-16-P-RF
Enhcd EtherSwitch, L2/L3, SM, 15 FE,1 GE, POE REMANUFACTURED
The Cisco Enhanced EtherSwitch Service Module helps ensure maximum availability, high performance, ease of upgrade, and expandability. The modules have their own processors, switching engines, and flash memory that run independently of host router resources, helping ensure maximum concurrent switching and routing performance as well as providing security, and increased ease of management.
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Designed For | Cisco 2911, 2921, 2951, 3925, 3945; Catalyst 2960-24, 2960-48, 3560E-24, 3560E-48 |
| Device Type | Switch - 15 ports - L3 - managed |
| Dimensions (WxDxH) | 8.1 in x 8.1 in x 1.6 in |
| Enclosure Type | Plug-in module |
| Features | Layer 3 switching, layer 2 switching, power over Ethernet (PoE), Intrusion Detection System (IDS), IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
| Ports | 15 x 10/100 + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 3, HTTP, SSH |
| Routing Protocol | RIP, EIGRP, OSPF for IPv6, static IPv6 routing |
| Subtype | Fast Ethernet |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Depth | 8.1 in |
| Designed For | Cisco 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, |
| Device Type | Switch - 15 ports - L3 - managed |
| Enclosure Type | Plug-in module |
| Features | Layer 3 switching, layer 2 switching, power over Ethernet (PoE), Intrusion Detection System (IDS), IPv6 support, Access Control List (ACL) support, Qu |
| Height | 1.6 in |
| Humidity Range Operating | 5 - 90% |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Ports | 15 x 10/100 + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 3, HTTP, SSH |
| Routing Protocol | RIP, EIGRP, OSPF for IPv6, static IPv6 routing |
| Subtype | Fast Ethernet |
| Weight | 2.18 lbs |
| Width | 8.1 in |
