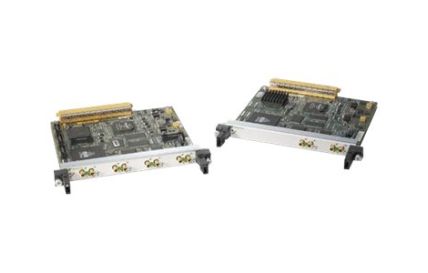

SPA-2XT3/E3-V2-RF
2pt Clear Channel T3/E3SharedPortAdapter,Ver2 REMANUFACTURED
Cisco Clear Channel Shared Port Adapter Version 2 - expansion module
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | ANSI T1.102, ANSI T1.404, ANSI T1.107 |
| Data Link Protocol | HDLC, Frame Relay, PPP |
| Data Transfer Rate | 44.736 Mbps |
| Designed For | ASR 1001, 1001-X, 1002, 1002-F, 1002-X, 1002-X, 10G,, 1004, 1006, 1013 |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 6.8 in x 7.3 in x 0.8 in |
| Form Factor | Plug-in module |
| Line Rate | T-3/E-3 |
| Ports | T3/E3 x 2 |
| Compliant Standards | VCCI, EN 60950, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, AS/NZS |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, PPP |
| Data Transfer Rate | 44.736 Mbps |
| Depth | 7.3 in |
| Designed For | Cisco ASR 1001, 1001 VPN and Firewall Bundle, 1001 VPN Bundle, 1001-X, 1002, 1002 BB Bundle, 1002 FPI Bundle, 1002 HA Bundle, 1002 Security HA Bundle, |
| Device Type | Expansion module |
| Features | Full duplex capability |
| Form Factor | Plug-in module |
| Height | 0.8 in |
| Humidity Range Operating | 5 - 85% |
| Interfaces | 2 x T3/E3 |
| Line Coding Format | HDB3, B3ZS |
| Line Rate | T-3/E-3 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 41 |
| Ports | T3/E3 x 2 |
| Remote Management Protocol | SNMP |
| Weight | 11.99 oz |
| Width | 6.8 in |
