Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
SPA-4XOC12-POS-RF

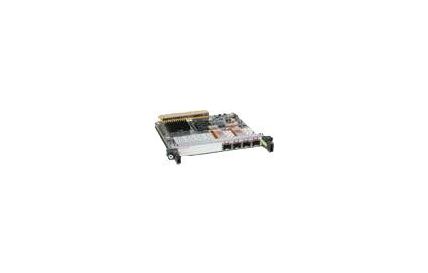

Cisco 4-port OC-12c/STM-4 Packet over SONET Shared Port Adapter - expansion module
Cisco 4-port OC-12c/STM-4 Packet over SONET Shared Port Adapter - expansion module - 4 ports
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, POS |
| Data Transfer Rate | 622.08 Mbps |
| Designed For | P/N: 12000-SIP-401, 12000-SIP-401=, 12000-SIP-401-RF, 12000-SIP-501, 12000-SIP-501=, 12000-SIP-501-RF, 12000-SIP-601, 12000-SIP-601=, 12000-SIP-601-RF, 12K-SIP-601-5PK= |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 6.8 in x 7.3 in x 0.8 in |
| Form Factor | Plug-in module |
| Line Rate | OC-12c/STM-4 |
| Ports Qty | 4 ports |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | NEBS level 3, ETSI, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 609 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, POS |
| Data Transfer Rate | 622.08 Mbps |
| Depth | 7.3 in |
| Designed For | P/N: 12000-SIP-401, 12000-SIP-401=, 12000-SIP-401-RF, 12000-SIP-501, 12000-SIP-501=, 12000-SIP-501-RF, 12000-SIP-601, 12000-SIP-601=, 12000-SIP-601-RF |
| Device Type | Expansion module - 4 ports |
| Expansion Slots | 4 (total) / 4 (free) x SFP |
| Features | IPv6 support |
| Form Factor | Plug-in module |
| Height | 0.8 in |
| Humidity Range Operating | 5 - 85% |
| Line Rate | OC-12c/STM-4 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 41 |
| Remote Management Protocol | SNMP |
| Status Indicators | Port status, status, alarm |
| Weight | 11.99 oz |
| Width | 6.8 in |
