SPA-8XOC12-POS-RF

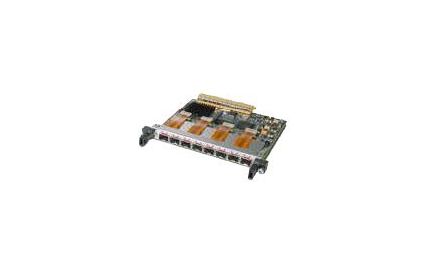

8pt OC12/STM4 POS Shared Port Adapter REMANUFACTURED
The Cisco 8-port OC-12 POS Shared Port Adapters (SPA) is available on high-end Cisco Systems routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability. The Cisco SPA portfolio allows different interfaces to be deployed on the same interface processor.
A key feature of these SPAs is the Multi-Rate operating mode support. The Cisco 8-port OC-12 POS SPA provides support for Small Form-Factor Pluggable (SFP) interfaces.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, POS |
| Data Transfer Rate | 622.08 Mbps |
| Designed For | P/N: 12000-SIP-501, 12000-SIP-501=, 12000-SIP-501-RF, 12000-SIP-601, 12000-SIP-601=, 12000-SIP-601-RF, 12K-SIP-601-5PK= |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 6.8 in x 7.3 in x 0.8 in |
| Form Factor | Plug-in module |
| Line Rate | OC-12c/STM-4 |
| Ports Qty | 8 ports |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | NEBS level 3, ETSI, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 609 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, POS |
| Data Transfer Rate | 622.08 Mbps |
| Depth | 7.3 in |
| Designed For | P/N: 12000-SIP-501, 12000-SIP-501=, 12000-SIP-501-RF, 12000-SIP-601, 12000-SIP-601=, 12000-SIP-601-RF, 12K-SIP-601-5PK= |
| Device Type | Expansion module - 8 ports |
| Expansion Slots | 8 (total) / 8 (free) x SFP |
| Features | IPv6 support |
| Form Factor | Plug-in module |
| Height | 0.8 in |
| Humidity Range Operating | 5 - 85% |
| Line Rate | OC-12c/STM-4 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 41 |
| Remote Management Protocol | SNMP |
| Status Indicators | Port status, status, alarm |
| Weight | 11.99 oz |
| Width | 6.8 in |
