SPA2XOC48POSRPR-RF

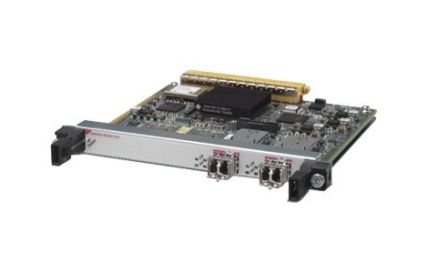

2pt OC48/STM16 POS/RPR Shared Port Adapters REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The SPA2XOC48POSRPR is a remanufactured 2-port OC48/STM16 POS/RPR Shared Port Adapter designed for Cisco routers. It supports Packet over SONET/SDH (POS) and Resilient Packet Ring (RPR) protocols, providing high-speed optical connectivity with two OC-48c/STM-16 ports. This adapter is compatible with Cisco ASR 1000 Series routers and other platforms supporting Shared Port Adapters.
Key features include:
2 OC-48c/STM-16 ports using SFP optics modules.
Support for synchronization (local or loop timed), pointer activity monitoring, and loopback diagnostics.
Compliance with SONET/SDH standards including Telcordia GR-253-CORE, ANSI T1.105, and ITU-T G.707.
Support for various SONET/SDH alarm and signal events such as loss of signal, error counts, and threshold crossing alarms.
Network management via SNMP and RFC 2558 MIB.
Online insertion and removal (OIR) capability.
Power consumption approximately 13-14W (without optics).
Physical dimensions approximately 0.8 in height, 6.75 in width, and 7.28 in depth.
Operating temperature range from 5 to 40°C.
Compliance with safety and EMC standards including UL 60950, EN60950, FCC Part 15, and NEBS Level 3.
For optical modules, it supports various SFP optics for OC-3 and OC-12, and for OC-48 it uses SFP-OC3-SR, SFP-OC3-IR1, and SFP-OC3-LR2 optics with reach up to 80 km single-mode fiber.
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, PPP, SRP, RPR |
| Designed For | SPA Interface Processor 800 |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 6.8 in x 7.3 in x 0.8 in |
| Form Factor | Plug-in module |
| Line Rate | OC-48c/STM-16c |
| Ports Qty | 2 ports |
