Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
UCS-FI-M-6324-RF
UCS6324 In-Chas FI w 4 U 1x40GExpPort,16 10Gb REMANUFACTURED

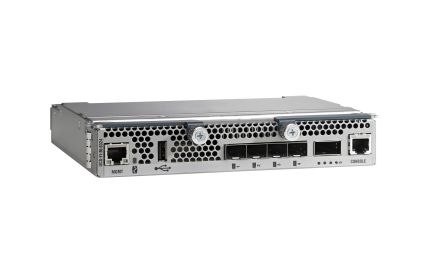

Cisco UCS 6324 Fabric Interconnect - switch - managed - plug-in module
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | 3 years warranty |
| Capacity | QoS hardware queues: 16 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qaz |
| Device Type | Switch - managed |
| Dimensions (WxDxH) | 1.4 in x 7.2 in x 7.6 in |
| Enclosure Type | Plug-in module |
| Features | VLAN support, IGMP snooping, firmware upgradable, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), Class of Service (CoS) |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 20000 entries |
| Manufacturer Warranty | 3 years warranty |
| Performance | Throughput: 500 Gbps |
| Ports | 4 x 1 Gigabit / 10 Gigabit / 8 Gb Fiber Channel / FCoE SFP+ + 1 x 40Gb Ethernet / FCoE QSFP+ (breakout compatible) |
| Remote Management Protocol | RMON |
| Subtype | 10 Gigabit Ethernet |
| Capacity | QoS hardware queues : 16 |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICE |
| Depth | 7.2 in |
| Device Type | Switch - managed |
| Enclosure Type | Plug-in module |
| Features | VLAN support, IGMP snooping, firmware upgradable, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), |
| Height | 7.6 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Interfaces | 4 x - SFP+ |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 20000 entries |
| Max Operating Temperature | 95 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| Performance | Throughput : 500 Gbps |
| Ports | 4 x 1 Gigabit / 10 Gigabit / 8 Gb Fiber Channel / FCoE SFP+ + 1 x 40Gb Ethernet / FCoE QSFP+ (breakout compatible) |
| Remote Management Protocol | RMON |
| Service & Support Details | Limited warranty - 3 years |
| Service & Support | 3 years warranty |
| Subtype | 10 Gigabit Ethernet |
| Weight | 2.5 lbs |
| Width | 1.4 in |
