UCS-IOM-2204XP-RF

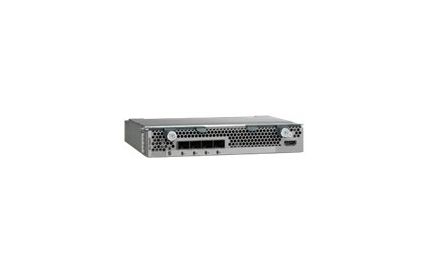

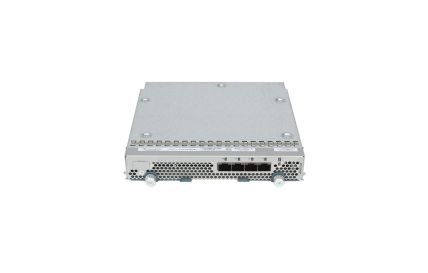

Cisco UCS 2204XP Fabric Extender - expansion module - 4 ports
Cisco UCS 2200 series Fabric Extender brings the unified fabric into the blade server enclosure, providing multiple 10 Gigabit Ethernet connections between blade servers and the fabric interconnect, simplifying diagnostics, cabling, and management.
The Cisco UCS 2200 series is enabling a lossless and deterministic Fiber Channel over Ethernet (FCoE) fabric to connect all blades and chassis together. Since the fabric extender is similar to a distributed line card, it does not perform any switching and is managed as an extension of the fabric interconnects. This approach removes switching from the chassis, reducing overall infrastructure complexity and enabling Cisco UCS to scale to many chassis without multiplying the number of switches needed, reducing TCO and allowing all chassis to be managed as a single, highly available management domain.
The Cisco UCS 2204XP Fabric Extender has four 10 Gigabit Ethernet, FCoE-capable, SFP+ ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2204XP has sixteen 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 80 Gbps of I/O to the chassis.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Data Link Protocol | 10 GigE |
| Designed For | Network Analysis Module 2204, 2204 Appliance |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 1.4 in x 7.2 in x 7.6 in |
| Form Factor | Plug-in module |
| Performance | Forwarding performance: 640 Gbps |
| Ports Qty | 4 ports |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, A |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Depth | 7.2 in |
| Designed For | Cisco Network Analysis Module 2204, 2204 Appliance |
| Device Type | Expansion module - 4 ports |
| Features | VLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Qualit |
| Form Factor | Plug-in module |
| Height | 7.6 in |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Interfaces | 4 x network - SFP+ |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Performance | Forwarding performance : 640 Gbps |
| Status Indicators | Link activity, status |
| Weight | 2.43 lbs |
| Width | 1.4 in |
