VG202XM-RF

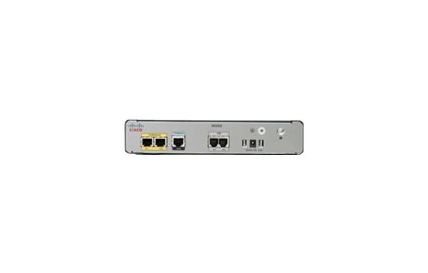

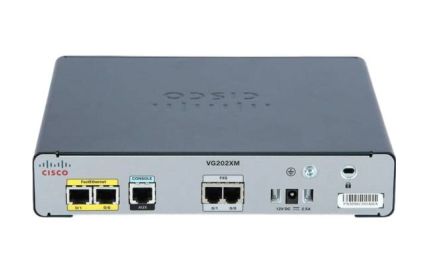

Cisco VG202XM Analog Voice Gateway - VoIP phone adapter
The Cisco VG202XM voice gateways are analog voice gateways for the service provider, commercial, and enterprise unified communication markets. These voice gateways provide voice connectivity to devices such as analog phones, fax machines, and modems.
The Cisco VG202XM voice gateways provide support for 2-FXS ports and parity with Cisco IOS fax/modem, security, and Session Initiation Protocol (SIP) features. These voice gateways can be configured with Cisco Unified Communications Manager Express (CUCME) or Cisco Unified Communications Manager (CUCM).
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Link Protocol | Ethernet, Fast Ethernet |
| Device Type | VoIP phone adapter |
| Dimensions (WxDxH) | 8.8 in x 8.1 in x 1.8 in |
| Flash Memory | 128 MB |
| Form Factor | External |
| Power | AC 120/230 V ( 50/60 Hz ) |
| RAM | 256 MB |
| Telephony Interfaces | 2 phone (FXS) |
| VoIP Protocols | MGCP, SCCP, SIP, H.323 v4, RTP, SRTP |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | CISPR 22 Class B, CISPR 24, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Depth | 8.1 in |
| Device Type | VoIP phone adapter |
| Features | Wall mountable, RADIUS support |
| Flash Memory | 128 MB |
| Form Factor | External |
| Height | 1.8 in |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Interfaces | 2 x 100Base-TX - RJ-45 |
| IP Telephony Features | Caller ID, call waiting, automatic fax/modem detection and pass-through, call hold, call transfer |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| MTBF | 200,000 hours |
| Network / Transport Protocol | DHCP, DNS |
| Power Consumption Operational | 30 Watt |
| Power Device | External power adapter |
| RAM | 256 MB DDR2 SDRAM |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, TFTP, CLI |
| Routing Protocol | HSRP |
| Telephony Interfaces | 2 phone (FXS) |
| Voice Codecs | G.711, G.729a, T.38 |
| VoIP Protocols | MGCP, SCCP, SIP, H.323 v4, RTP, SRTP |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 2.98 lbs |
| Width | 8.8 in |
