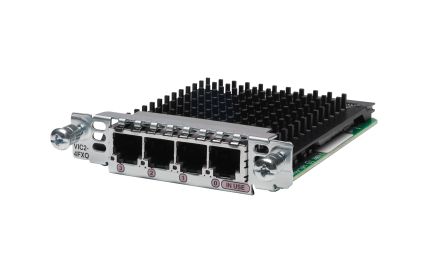

VIC2-4FXO-RF
Cisco IP Unified Communications Voice/Fax Network Module - voice interface card
The Cisco IP Communications voice/fax network modules provide enterprises, managed service providers, and service providers the ability to directly connect the public switched telephone network (PSTN) and traditional telephony equipment to existing Cisco 2600XM Series, Cisco 2691, 3640, and 3660, and Cisco 3700 Series voice gateway routers. This set of Cisco IP Communications voice/fax network modules delivers the most versatile combination of analog and digital voice and data capabilities in a single network module.
The 4-port FXO voice/fax interface card is a universal card, which can be software configured to work in all countries. FXO port is used to connect to PBX or key system, or to provide off-premises connections to PSTN or PTT. Supports battery reversal detection and caller ID.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Analog Ports Qty | 4 |
| Designed For | Cisco 1711, 1712, 1721, 1751, 1751-V, 1760, 1760-V, 1760-V3PN, 2600XM, 2610XM, 2611XM, 2620XM, 2621XM, 2650XM, 2651XM, 2651XM-V, 2651XM-V-SRST, 2691, 2811, 2821, 2851, 2901, 2911, 2921, 2951, 3620, 3631, 3631-CO, 3640, 3640A, 3660, 3661, 3662, 3725, 3745, |
| Device Type | Voice interface card |
| Form Factor | Internal |
| ISDN Interface | FXO |
| System Requirements | Cisco IOS 12.2(15)ZJ |
| Analog Ports Qty | 4 |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | FCC Class B certified, UL 1950 |
| Connectivity Technology | Wired |
| Designed For | Cisco 1711, 1712, 1721, 1721 VPN Security, 1751, 1751 VPN Bundle, 1751-V, 1760, 1760 VPN Bundle, 1760-V, 1760-V3PN Bundle, 2600XM VPN Bundle, 2610XM, |
| Device Type | Voice interface card |
| Form Factor | Internal |
| Humidity Range Operating | 5 - 85% |
| Interfaces | 4 x phone line - FXO - RJ-11 |
| ISDN Interface | FXO |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| MTBF | 1,245,152 hour(s) |
| OS Required | Cisco IOS 12.2(15)ZJ |
