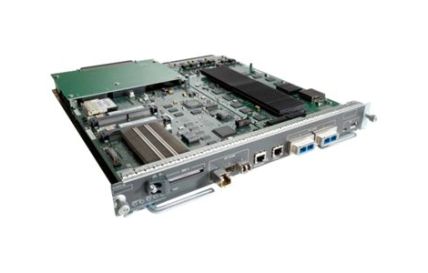

VS-S2T-10G-RF
Cisco Catalyst 6500 Series Supervisor Engine 2T - control processor
The Cisco Catalyst 6500 Supervisor Engine 2T is the addition to the family of supervisor engines. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-series chassis. The forwarding engine on Supervisor Engine 2T is capable of delivering high-performance forwarding for Layer 2 and Layer 3 services. Supervisor Engine 2T delivers more in the areas of security, quality of service (QoS), virtualization, and manageability. The rich feature set of Supervisor Engine 2T enhances applications such as traditional IP forwarding, Layer 2 and Layer 3 Multiprotocol Label Switching (MPLS) VPNs, and VPLS.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Capacity | MAC addresses: 128000 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Designed For | Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6509-V-E, 6513-E |
| Device Type | Control processor |
| Dimensions (WxDxH) | 14.4 in x 16 in x 1.7 in |
| Flash Memory | 1 GB |
| Form Factor | Plug-in module |
| Performance | IPv4 routing: 720 Mpps |
| RAM | 2 GB (installed) / 4 GB (max) |
| Capacity | MAC addresses : 128000 |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 609 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Depth | 16 in |
| Designed For | Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Applicatio |
| Device Type | Control processor |
| Expansion Slots | 3 (total) / 3 (free) x SFP (mini-GBIC) |
| Features | Layer 3 switching, layer 2 switching, NAT support, VPN support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality |
| Flash Memory | 1 GB |
| Form Factor | Plug-in module |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Interfaces | 1 x 1000Base-T (management) - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Performance | IPv4 routing : 720 Mpps |
| Power Consumption Operational | 435 Watt |
| RAM | 2 GB ( 4 GB max ) |
| Supported Flash Memory Cards | CompactFlash Card |
| Weight | 11.9 lbs |
| Width | 14.4 in |
