Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
VS-S2T-10G-XL-RF

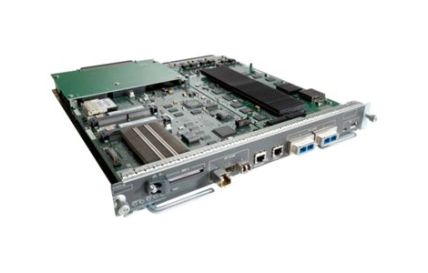

Cisco Catalyst 6500 Series Supervisor Engine 2T XL - control processor
Cisco Catalyst 6500 Series Supervisor Engine 2T XL - control processor
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Capacity | MAC addresses: 128000 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Designed For | Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6509-V-E, 6513-E |
| Device Type | Control processor |
| Dimensions (WxDxH) | 14.4 in x 16 in x 1.7 in |
| Flash Memory | 1 GB |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Performance | IPv4 routing: 720 Mpps |
| RAM | 2 GB (installed) / 4 GB (max) |
| Capacity | MAC addresses : 128000 |
| Compatible Slots | 1 x expansion slot |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 609 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Depth | 16 in |
| Designed For | Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Applicatio |
| Device Type | Control processor |
| Expansion Slots | 3 (total) / 3 (free) x SFP (mini-GBIC) |
| Features | Layer 3 switching, layer 2 switching, NAT support, VPN support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality |
| Flash Memory | 1 GB |
| Form Factor | Plug-in module |
| Height | 1.7 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Interfaces | 1 x 1000Base-T (management) - RJ-45 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Performance | IPv4 routing : 720 Mpps |
| Power Consumption Operational | 450 Watt |
| RAM | 2 GB ( 4 GB max ) |
| Service & Support Details | Limited warranty - 90 days |
| Service & Support | 90 days warranty |
| Supported Flash Memory Cards | CompactFlash Card |
| Weight | 11.99 lbs |
| Width | 14.4 in |
