Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

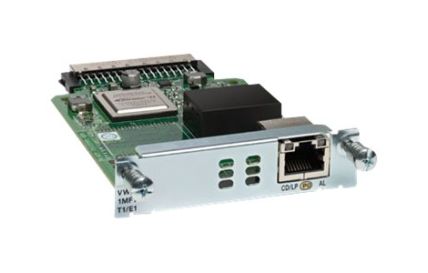

VWIC3-1MFT-G703-RF
1pt3rdGenMultiflexTrunkVoice/WAN IntCardG.703 REMANUFACTURED
The flexible interface cards support multiple integrated data, voice and video applications, facilitating the migration from data only as well as circuit-switched voice/video services to a packet voice/video solution
The Cisco 1-port G.703 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1, fractional E1, and unstructured E1 (G.703) applications. To simplify remote management, the G.703 version includes a fully managed DSU. The G.703 versions also support all the capabilities on the T1/E1 versions.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Transfer Rate | 2.048 Mbps |
| Designed For | Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1921 T1, 1941, 2901, 2911, 2921, 2951, 3925, 3925E, 3945, 3945E |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 3.1 in x 4.7 in x 0.7 in |
| Form Factor | Plug-in module |
| Interface (Bus) Type | EHWIC |
| Line Rate | T-1/E-1 |
| Compatible Slots | 1 x EHWIC |
| Compliant Standards | CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.048 Mbps |
| Depth | 4.7 in |
| Designed For | Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1941, 1941 Mobile Wireless |
| Device Type | Expansion module |
| Features | Integrated CSU/DSU |
| Form Factor | Plug-in module |
| Height | 0.7 in |
| Humidity Range Operating | 5 - 85% |
| Interface (Bus) Type | EHWIC |
| Interfaces | 1 x T1/E1 |
| Line Coding Format | AMI, B8ZS, HDB3 |
| Line Rate | T-1/E-1 |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| Remote Management Protocol | SNMP, Telnet |
| Status Indicators | Carrier detect, alarm |
| Weight | 2.89 oz |
| Width | 3.1 in |
