WS-C2960+24TC-S-RF

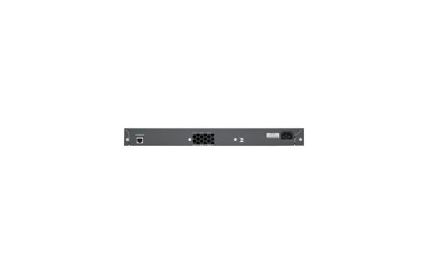

Cisco Catalyst 2960-Plus 24TC-S - switch - 24 ports - managed - rack-mountable
The Cisco Catalyst 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisco IOS software features, including Cisco Catalyst SmartOperations.
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Bundled Services | Limited lifetime warranty |
Capacity | Active VLANs: 64 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
Device Type | Switch - 24 ports - managed |
Dimensions (WxDxH) | 17.7 in x 9.5 in x 1.7 in |
Enclosure Type | Rack-mountable 1U |
Features | Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spannin |
Jumbo Frame Support | 9018 bytes |
Manufacturer Warranty | Limited lifetime warranty |
Performance | Switching capacity: 16 Gbps |
Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
Power | AC 120/230 V ( 50/60 Hz ) |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP |
Subtype | Fast Ethernet |
Authentication Method | RADIUS, TACACS+ |
Capacity | Active VLANs : 64 |
Compliant Standards | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES- |
Depth | 9.5 in |
Device Type | Switch - 24 ports - managed |
Enclosure Type | Rack-mountable 1U |
Features | Redundant Power System (RPS) connector |
Flash Memory | 64 MB |
Height | 1.7 in |
Humidity Range Operating | 10 - 95% (non-condensing) |
Humidity Range Storage | 10 - 95% (non-condensing) |
Interfaces | 24 x 100Base-TX - RJ-45 |
Jumbo Frame Support | 9018 bytes |
Max Operating Temperature | 104 |
Max Storage Temperature | 158 |
Min Operating Temperature | 23 |
Min Storage Temperature | -13 |
Performance | Switching capacity : 16 Gbps |
Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
Power Device | Internal power supply |
Rack Mounting Kit | Optional |
RAM | 128 MB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP |
Service & Support | Limited warranty - replacement - lifetime |
Software Included | Cisco IOS LAN Lite |
Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
Subtype | Fast Ethernet |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Weight | 7.94 lbs |
Width | 17.7 in |
