Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
WS-C2960+48TC-S-RF
Catalyst 2960Plus48 10/100+2 T/SFP LAN Lite REMANUFACTURED

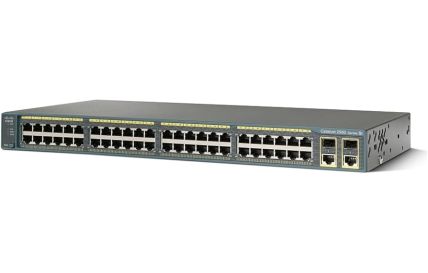

Cisco Catalyst 2960-Plus 48TC-S - switch - 48 ports - managed - rack-mountable
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
Bundled Services | Limited lifetime warranty |
Capacity | Active VLANs: 64 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
Device Type | Switch - 48 ports - managed |
Dimensions (WxDxH) | 17.7 in x 9.5 in x 1.7 in |
Enclosure Type | Rack-mountable 1U |
Features | Layer 2 switching, DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, full duplex mode, Spanning Tree Protocol (STP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TF |
Jumbo Frame Support | 9018 bytes |
Manufacturer Warranty | Limited lifetime warranty |
Performance | Switching capacity: 16 Gbps |
Ports | 48 x 10/100 + 2 x combo Gigabit SFP |
Power | AC 120/230 V ( 50/60 Hz ) |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
Routing Protocol | IGMPv3 |
Subtype | Fast Ethernet |
Authentication Method | RADIUS, TACACS+ |
Capacity | Active VLANs : 64 |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950- |
Depth | 9.5 in |
Device Type | Switch - 48 ports - managed |
Enclosure Type | Rack-mountable 1U |
Features | Redundant Power System (RPS) connector |
Flash Memory | 64 MB |
Height | 1.7 in |
Humidity Range Operating | 10 - 95% (non-condensing) |
Humidity Range Storage | 10 - 95% (non-condensing) |
Interfaces | 48 x 100Base-TX - RJ-45 |
Jumbo Frame Support | 9018 bytes |
Max Operating Temperature | 113 |
Max Storage Temperature | 158 |
Min Operating Temperature | 23 |
Min Storage Temperature | -13 |
MTBF | 623,000 hours |
Performance | Switching capacity : 16 Gbps |
Ports | 48 x 10/100 + 2 x combo Gigabit SFP |
Power Device | Internal power supply |
RAM | 128 MB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
Routing Protocol | IGMPv3 |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: next business day |
Software Included | Cisco IOS LAN Lite |
Status Indicators | Port status, link activity, port transmission speed, port duplex mode, system |
Subtype | Fast Ethernet |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Weight | 7.94 lbs |
Width | 17.7 in |
