Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
WS-C2960X-24PSL-RF
Catlyst2960-X 24GigEPoE 370W 4x1G SFP LANBase REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

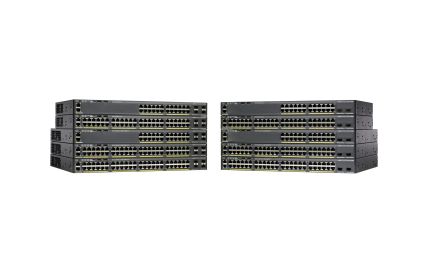

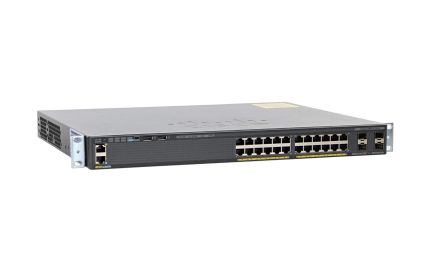

The Cisco WS-C2960X-24PSL is a switch from the Catalyst 2960-X Series, featuring:
24 Gigabit Ethernet ports with line-rate forwarding performance.
4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks.
Power over Ethernet Plus (PoE+) support with a power budget up to 740W and Perpetual PoE.
Runs Cisco IOS LAN Base or LAN Lite and Cisco IOS IP Lite.
Device management options including web UI, Bluetooth over-the-air access, CLI, SNMP, and console access via RJ-45 or USB.
Network management with Cisco Prime, Cisco Network Plug and Play, and Cisco DNA Center.
Stacking capabilities with FlexStack-Plus and FlexStack-Extended.
Layer 3 features such as routed access with OSPF, static routing, and RIP.
Security features including 802.1X, SPAN, and BPDU Guard.
High reliability with enhanced Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty.
Optional dual field-replaceable power supplies for resiliency.
| Bundled Services | Limited lifetime warranty |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
| Device Type | Switch - 24 ports - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.8 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spa |
| Jumbo Frame Support | 9216 bytes |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 216 Gbps |
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Over Ethernet (PoE) | PoE+ |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Subtype | Gigabit Ethernet |
