Items purchased through Cisco Outlet are remanufactured. Conditions may vary from the visual depictions on the site.
WS-C2960X48LPDL-RF
Catalyst2960X48GigE PoE370W 2x10G SFP+LANBase REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

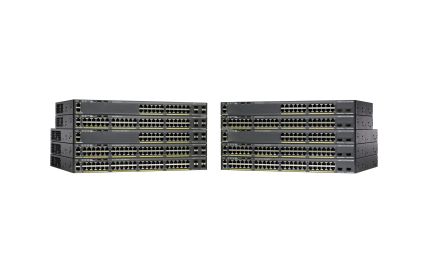

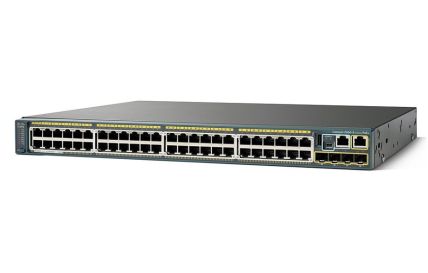

The Cisco WS-C2960X48LPDL is a model within the Cisco Catalyst 2960-X Series switches.
Switch Type: Cisco Catalyst 2960-X Series fixed-configuration switch.
Ports: 48 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support.
PoE Budget: Supports PoE power output per port up to 30.8W, with total switch power output varying depending on the model.
Uplinks: Includes uplink ports, typically 4 x 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) slots.
Software: Runs Cisco IOS LAN Base or LAN Lite software images.
Management: Supports device management via web UI, CLI, SNMP, USB, and console ports.
Features: Includes advanced Layer 2 switching features, energy management, fanless operation for quieter environments, and support for Cisco network management tools such as Cisco Prime and Cisco DNA Center.
Power and Cooling: Fanless design with operational temperature up to 45°C, suitable for deployment outside traditional wiring closets.
Stacking: Supports FlexStack-Plus and FlexStack-Extended for stacking multiple switches.
Security: Features include 802.1X authentication, SPAN, and BPDU Guard.
| Bundled Services | Limited lifetime warranty |
| Capacity | Active VLANs: 1023 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
| Device Type | Switch - 48 ports - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.8 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spann |
| Jumbo Frame Support | 9216 bytes |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 216 Gbps |
| PoE Budget | 370 W |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x SFP+ |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Over Ethernet (PoE) | PoE+ |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
| Subtype | Gigabit Ethernet |
