Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
WS-C3650-48PS-S-RF

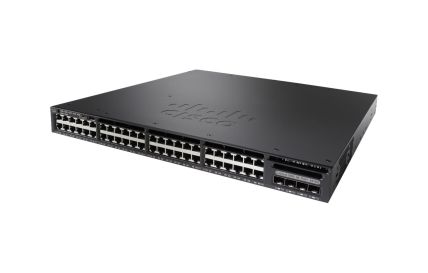

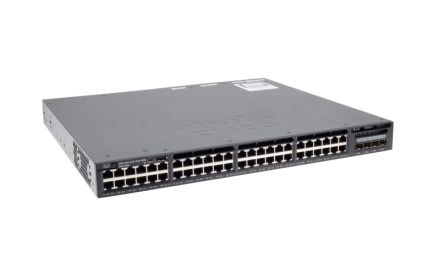

Cisco Catalyst 3650-48PS-S - switch - 48 ports - managed - rack-mountable
Cisco Catalyst 3650 series switches are enterprise-class, stackable access switches that provide the foundation for full wired and wireless convergence on a single platform.
Facilitate wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. Cisco Catalyst 3650 series switches are powered by the Cisco Unified Access Data Plane (UADP) ASIC and built on advanced Cisco StackWise-160 technology.
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | Limited lifetime warranty |
| Capacity | IPv4 routes: 24000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 17.6 in x 1.7 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 176 Gbps |
| PoE Budget | 390 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x SFP |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Over Ethernet (PoE) | PoE+ |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Subtype | Gigabit Ethernet |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | IPv4 routes : 24000 |
| Compliant Standards | CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950- |
| Depth | 17.6 in |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
| Features | ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP |
| Flash Memory | 2 GB |
| Height | 1.7 in |
| Humidity Range Operating | 5 - 96% (non-condensing) |
| Installed Qty | 1 (installed) / 2 (max) |
| Interfaces | 48 x 1000Base-T - RJ-45 - PoE+ - 30 W |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Max Operating Temperature | 113 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 23 |
| Min Storage Temperature | -40 |
| MTBF | 383,760 hours |
| Performance | Switching capacity : 176 Gbps |
| PoE Budget | 390 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x SFP |
| Power Device | Internal power supply - hot-plug |
| Power Over Ethernet (PoE) | PoE+ |
| Power Provided | 640 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Rack Mounting Kit | Included |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Software Included | Cisco IOS IP Base |
| Status Indicators | Port transmission speed, port duplex mode, system, active, status, PoE |
| Subtype | Gigabit Ethernet |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 16.75 lbs |
| Width | 17.5 in |
