WS-C3650-48TS-E-RF

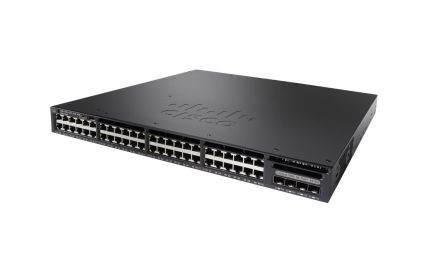

Cisco Catalyst 3650-48TS-E - switch - 48 ports - managed - rack-mountable

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.

In Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

Bundled ServicesLimited lifetime warranty
CapacityIPv4 routes: 24000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device TypeSwitch - 48 ports - L3 - managed - stackable
Dimensions (WxDxH)17.5 in x 17.6 in x 1.7 in
Enclosure TypeDesktop, rack-mountable 1U
FeaturesLayer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
Manufacturer WarrantyLimited lifetime warranty
PerformanceSwitching capacity: 176 Gbps
Ports48 x 10/100/1000 + 4 x SFP
PowerAC 120/230 V ( 50/60 Hz )
Power RedundancyOptional
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing ProtocolBGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
SubtypeGigabit Ethernet
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
CapacityIPv4 routes : 24000
Compliant StandardsCISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-
Depth17.6 in
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
Expansion Slots1 (total) / 1 (free) x Stacking Module slot
FeaturesLayer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tr
Flash Memory2 GB
Height1.7 in
Humidity Range Operating5 - 96% (non-condensing)
Installed Qty1 (installed) / 2 (max)
Interfaces48 x 1000Base-T - RJ-45
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
Max Operating Temperature113
Max Storage Temperature158
Min Operating Temperature23
Min Storage Temperature-40
MTBF527,580 hours
PerformanceSwitching capacity : 176 Gbps
Ports48 x 10/100/1000 + 4 x SFP
Power DeviceInternal power supply - hot-plug
Power Provided250 Watt
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Rack Mounting KitIncluded
RAM4 GB
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing ProtocolBGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Service & SupportLimited warranty - replacement - lifetime - response time: next business day
Software IncludedCisco IOS IP Services
Status IndicatorsPort transmission speed, port duplex mode, system, active, status
SubtypeGigabit Ethernet
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Weight15.9 lbs
Width17.5 in
