Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
WS-C3850-12S-E-RF

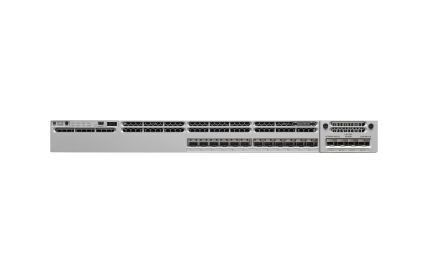

Cisco Catalyst 3850-12S-E - switch - 12 ports - managed - rack-mountable
Cisco Catalyst 3850-12S-E - switch - 12 ports - managed - desktop, rack-mountable
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Bundled Services | Limited lifetime warranty |
| Capacity | IPv4 routes: 24000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 17.7 in x 1.8 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 68 Gbps |
| Ports | 12 x Gigabit SFP |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng |
| Subtype | Gigabit Ethernet |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | IPv4 routes : 24000 |
| Compliant Standards | CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Ed |
| Depth | 17.7 in |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree |
| Flash Memory | 2 GB |
| Height | 1.8 in |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Installed Qty | 1 (installed) / 2 (max) |
| Interfaces | 12 x 1000Base-X - SFP |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Max Operating Temperature | 113 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 23 |
| Min Storage Temperature | -40 |
| MTBF | 315,840 hours |
| Performance | Switching capacity : 68 Gbps |
| Ports | 12 x Gigabit SFP |
| Power Device | Internal power supply |
| Power Provided | 350 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Software Included | Cisco IOS IP Services |
| Status Indicators | Port transmission speed, port duplex mode, system, status, PoE |
| Subtype | Gigabit Ethernet |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 15.48 lbs |
| Width | 17.5 in |
