WS-C3850-48P-S-RF

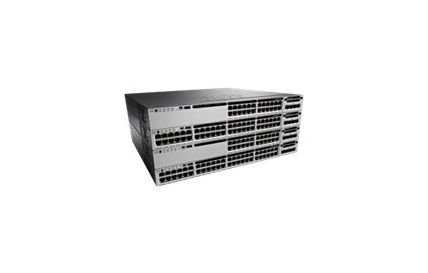

Cisco Catalyst 3850 48 Port PoE IP Base REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
| Bundled Services | Limited lifetime warranty |
| Capacity | IPv4 routes: 24000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 17.7 in x 1.8 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 176 Gbps |
| PoE Budget | 435 W |
| Ports | 48 x 10/100/1000 (PoE+) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Over Ethernet (PoE) | PoE+ |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | RIP-1, RIP-2, EIGRP, RIPng |
| Subtype | Gigabit Ethernet |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | IPv4 routes : 24000 |
| Compliant Standards | CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950- |
| Depth | 17.7 in |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree |
| Flash Memory | 2 GB |
| Height | 1.8 in |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Installed Qty | 1 (installed) / 2 (max) |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE+ - 30 W |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Max Operating Temperature | 113 |
| Max Storage Temperature | 158 |
| Min Operating Temperature | 23 |
| Min Storage Temperature | -40 |
| MTBF | 241,050 hours |
| Performance | Switching capacity : 176 Gbps |
| PoE Budget | 435 W |
| Ports | 48 x 10/100/1000 (PoE+) |
| Power Device | Internal power supply |
| Power Over Ethernet (PoE) | PoE+ |
| Power Provided | 715 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | RIP-1, RIP-2, EIGRP, RIPng |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Software Included | Cisco IOS IP Base |
| Status Indicators | Port transmission speed, port duplex mode, system, status, PoE |
| Subtype | Gigabit Ethernet |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Weight | 17.42 lbs |
| Width | 17.5 in |
