Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
WS-CAC-8700W-E-RF

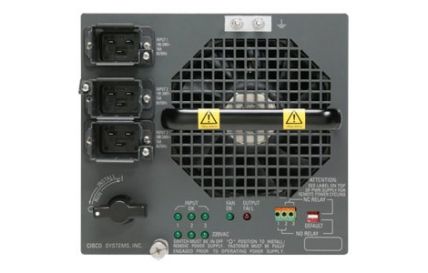

Cat6500 8700W Enhanced AC Power Supply REMANUFACTURED
The 8700W enhanced AC power supply provides the ability to remotely power cycle or shut down a Cisco Catalyst 6500 Series Switch for maintenance using Normally Open (NO) or Normally Closed (NC) built-in external relay contacts in the front-panel terminal block interface. The power supply relay contacts can be controlled through any appropriate third-party relay controller.
Out of Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Designed For | Catalyst 6500, 6503, 6503-E, 6504-E, 6506, 6506-E, 6506-E IDSM-2, 6509, 6509-E, 6509-E 10Gig, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig, 6513-E |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Dimensions (WxDxH) | 8 in x 16.3 in x 7.2 in |
| Input Connectors | 3 |
| Input Voltage | AC 100-240 V |
| Power Capacity | 8700 Watt |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 |
| Depth | 16.3 in |
| Designed For | Cisco Catalyst 6500, 6500 Series Fiber Interface Module, 6500 Series Supervisor Engine 720, 6503, 6503 Firewall Security System, 6503 VPN System, 6503 |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Frequency Required | 47 - 63 Hz |
| Height | 7.2 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Input Connectors | 3 |
| Input Voltage | AC 100-240 V |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| MTBF | 300,000 hours |
| Power Capacity | 8700 Watt |
| Weight | 39.68 lbs |
| Width | 8 in |
