Notes:

Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.

WS-X45-SUP8-E-RF

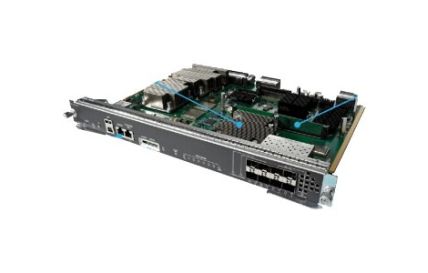

Cisco Supervisor Engine 8-E - control processor

The Cisco Catalyst 4500E Supervisor Engine 8-E is the enterprise-class switching engine that provides full convergence between wired and wireless networks on a single platform. This Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the wireless convergence and helps enable uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization.
The Cisco Catalyst 4500E Supervisor Engine 8-E is an enterprise-class, access and aggregation supervisor engine designed to provide up to 928 Gbps of wired access per system with an E-Series chassis. The supervisor also supports up to 20 Gbps of wireless termination in a controller-less unified access deployment. Cisco Catalyst 4500E Supervisor Engine 8-E provides 48 Gbps per slot with Flexible NetFlow (FNF), integrated Wireshark, and advanced security, combined with reduced total cost of ownership (TCO) and excellent investment protection. These capabilities make this supervisor engine the leading Cisco Unified Access supervisor engine in the Cisco Catalyst Family. Supervisor Engine 8-E is built with price-performance aggregation deployments in mind, helping to enable denser Gigabit Ethernet and 10 Gigabit Ethernet fiber deployments with enterprise-class aggregation functions. Supervisor Engine 8-E facilitates user experiences for enterprise, public sector, mid-market, and commercial customer business-critical applications.

In Stock

Inventory quantities are subject to availability and are not guaranteed until the order is placed.

CapacityQoS hardware entries: 128000
Device TypeControl processor
Form FactorPlug-in module
Manufacturer WarrantyLimited lifetime warranty
PerformanceSwitching capacity: 928 Gbps
Processor2.2 GHz
RAM4 GB
CapacityQoS hardware entries : 128000
Compatible Slots1 x expansion slot
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 6
Connectivity TechnologyWired
Device TypeControl processor
FeaturesUplink, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol
Form FactorPlug-in module
Humidity Range Operating10 - 90% (non-condensing)
Interfaces1 x management - RJ-45
Max Operating Temperature104
Min Operating Temperature32
MTBF309,906 hours
PerformanceSwitching capacity : 928 Gbps
Processors Installed2.2 GHz
RAM4 GB SDRAM
Remote Management ProtocolRMON 1, RMON 2
Routing ProtocolPIM-SM, PIM-DM, PIM-SSM
Service & Support DetailsLimited warranty - advance parts replacement - lifetime - response time: 10 days
Service & SupportLimited lifetime warranty
Supported Flash Memory CardsSD Memory Card
