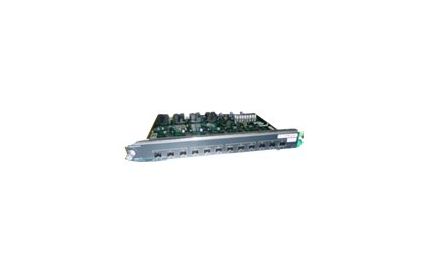

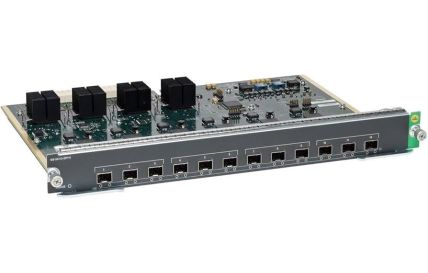

WS-X4712-SFP+E-RF
Catalyst 4500 E-Series 12-Port 10GbE (SFP+) REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
The Cisco WS-X4712-SFP+E is a 12-port, 10-Gigabit Ethernet module designed for the Catalyst 4500E Series switches.
Key features and specifications:
It provides 48 Gbps per-slot capacity.
Bandwidth is allocated across four 3-port groups, with 12 Gbps per port group (2.5:1 oversubscription).
Supports up to 12 ports of 10GE SFP+ (10GBASE-R) or 12 ports of GE SFP (1GBASE-X).
SFP+ and SFP transceivers can be used simultaneously on the same line card without restrictions.
Requires Cisco IOS XE Release 3.1.0SG or later.
Supports IEEE 802.1AE and Cisco TrustSec capabilities in hardware.
Supports Layer 2-4 Jumbo Frames up to 9216 bytes.
Designed for high-speed backbone and switch-to-switch applications in enterprise, commercial, and service provider environments.
Not supported on Catalyst 4507R-E and 4510R-E chassis.
Maximum rated power consumption is 90 watts.
This module is suitable for high-performance 10 Gigabit Ethernet connectivity in Catalyst 4500E chassis environments, providing flexibility with simultaneous 1G and 10G ports on the same card.
| Bundled Services | Limited lifetime warranty |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1ae |
| Designed For | Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle |
| Device Type | Switch - 12 ports |
| Dimensions (WxDxH) | 14.3 in x 10.7 in x 1.2 in |
| Enclosure Type | Plug-in module |
| Features | Port Aggregation Protocol (PAgP) support, Jumbo Frames support, Link Aggregation Control Protocol (LACP) |
| Jumbo Frame Support | 9216 bytes |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 48 Gbps |
| Ports | 12 x 10 Gigabit SFP+ |
| Subtype | 10 Gigabit Ethernet |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, CSA 22.2 No. 950, EN55022 Class A, AS/NZS 3548, RoHS, FCC Part 15 A |
| Depth | 10.7 in |
| Designed For | Cisco Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle |
| Device Type | Switch - 12 ports |
| Enclosure Type | Plug-in module |
| Features | Port Aggregation Protocol (PAgP) support, Jumbo Frames support, Link Aggregation Control Protocol (LACP) |
| Height | 1.2 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Interfaces | 12 x SFP+ |
| Jumbo Frame Support | 9216 bytes |
| Max Operating Temperature | 104 |
| Max Storage Temperature | 167 |
| Min Operating Temperature | 32 |
| Min Storage Temperature | -40 |
| MTBF | 387,172 hours |
| Performance | Switching capacity : 48 Gbps |
| Ports | 12 x 10 Gigabit SFP+ |
| Service & Support Details | Limited warranty - lifetime |
| Service & Support | Limited lifetime warranty |
| Subtype | 10 Gigabit Ethernet |
| Width | 14.3 in |
