Notes:
Items purchased through Cisco Outlet are refurbished. Conditions may vary from the visual depictions on the site.
WS-X4724-SFP-E-RF

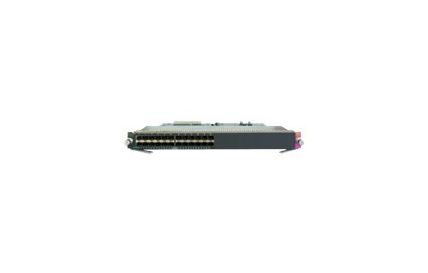

Cisco Line Card E-Series - expansion module - Gigabit SFP x 24
Cisco Line Card E-Series - expansion module
In Stock
Inventory quantities are subject to availability and are not guaranteed until the order is placed.
| Data Link Protocol | 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Designed For | Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle, 4507R+E, 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R+E, 4510R-E |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 14.5 in x 10.7 in x 1.2 in |
| Form Factor | Plug-in module |
| Ports | Gigabit SFP x 24 |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, EN55022 Class A, AS/NZS 3548, EN55024 Class A, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE, FCC Part 15 J |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Depth | 10.7 in |
| Designed For | Cisco Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle, 4507R+E, 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, |
| Device Type | Expansion module |
| Features | Jumbo Frames support |
| Form Factor | Plug-in module |
| Height | 1.2 in |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Interfaces | 24 x Ethernet 1000 - SFP (mini-GBIC) |
| Max Operating Temperature | 104 |
| Min Operating Temperature | 32 |
| MTBF | 1,329,480 hour(s) |
| Ports | Gigabit SFP x 24 |
| Power Consumption Operational | 40 Watt |
| Width | 14.5 in |
