X2-10GB-LR-RF
10GBASE-LR X2 Module REMANUFACTURED
Inventory quantities are subject to availability and are not guaranteed until the order is placed.

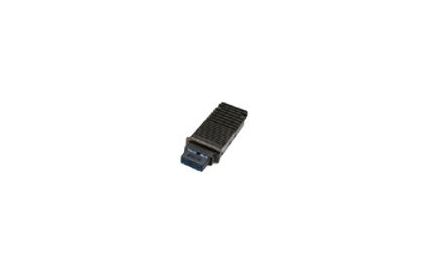

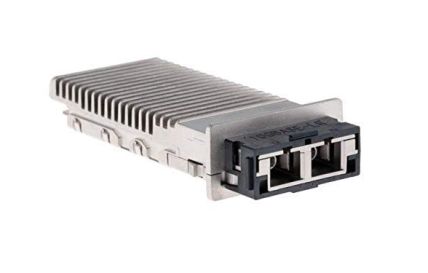

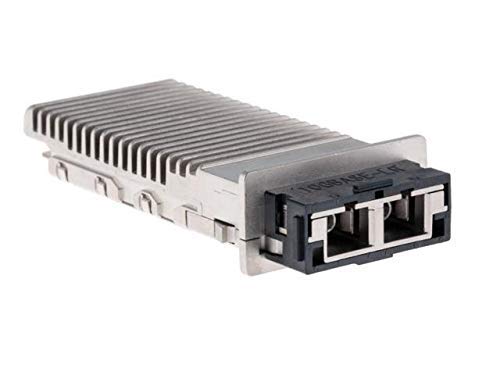

The Cisco X2-10GB-LR is a 10 Gigabit Ethernet X2 transceiver module designed for long-reach single-mode fiber (SMF) connections. It supports link lengths of up to 10 kilometers on standard single-mode fiber (G.652). The module features dual SC connectors and is hot-swappable, allowing easy installation and replacement. It connects the electrical circuitry of the system with the optical network and is compatible with Cisco switches and routers that support X2 modules. The X2-10GB-LR module is part of the Cisco 10GBASE X2 transceiver family, which includes various modules for different fiber types and distances. Note that some X2-10GB-LR modules labeled with numbers ending in -02 or -03 may not provide EMI compliance with certain Cisco hardware.
Key features:
10 Gigabit Ethernet speed
X2 form factor
Supports 10 km reach on single-mode fiber (SMF)
Dual SC connectors (supporting PC or UPC polished face types)
Hot-swappable module
Compatible with Cisco switches and routers supporting X2 modules
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Designed For | Cisco 8-Port 10; Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3750E-24PD, 3750E-24TD, 3750E-48PD, 3750E-48PD-F, 3750E-48TD, 4500, 4948 10; ME 4924-10GE; Supervisor Engine II-P |
| Device Type | X2 transceiver module - SC/PC single mode |
| Dimensions (WxDxH) | 1.4 in x 3.6 in x 0.5 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 90 days warranty |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1310 nm |
| Cabling Type | 10GBase-LR |
| Compatible Slots | 1 x X2 |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Depth | 3.6 in |
| Designed For | Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL |
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| Height | 0.5 in |
| Interfaces | 1 x Ethernet 10GBase-LR - SC/PC single mode x 2 |
| Max Operating Temperature | 158 |
| Max Transfer Distance | 6.2 miles |
| Min Operating Temperature | 32 |
| Optical Wave Length | 1310 nm |
| Service & Support | Limited warranty - 90 days |
| Weight | 10.58 oz |
| Width | 1.4 in |
